Type W Five-Conductor Round Portable Power Cable 2kV



Applications :

  • These cables are designed for use with mobile mining equipment such as continuous miners, drills, cutters,loading machines and AC shuttle cars. Type W cables are for applications where bare grounding conductors are not required or desired.

Standards :

  • ICEA S-75-381/NEMA WC 58



    ASTM B 172



    ASTM B 33



    CAN/CSA C22.2 No. 96

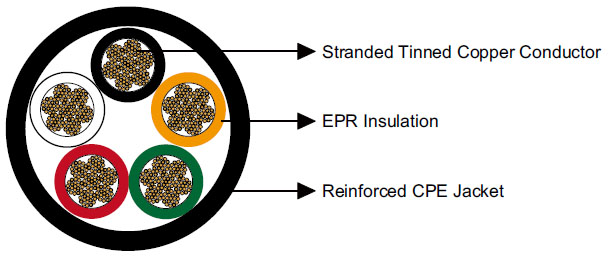

Construction :

  • Conductor Stranded annealed tinned copper conductor.
    Insulation Ethylene Propylene Rubber (EPR).
    Jacket Reinforced heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.)

Options :

  • Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
  • Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties :

  • Minimum Bending Radius: 6×OD.
  • Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

  • Construction No. of
    Strands    		 Nominal Insulation
    Thickness    		 Nominal Jacket
    Thickness    		 Nominal Overall
    Diameter    		 Nominal Weight Ampacity
    No. of
    cores×AWG/kcmil    		 - inch mm inch mm inch mm lbs/kft kg/km A
    5×8 133 0.06 1.5 0.140 3.6 1.07 27.2 776 1154 50
    5×6 133 0.06 1.5 0.155 3.9 1.24 31.5 1024 1524 68
    5×4 259 0.06 1.5 0.155 3.9 1.36 35.2 1432 2131 88
    5×2 259 0.06 1.5 0.170 4.3 1.56 39.8 2051 3052 116
    5×1 259 0.06 1.5 0.190 4.8 1.85 47.1 2665 3967 136
    5×1/0 266 0.08 2.0 0.205 5.2 1.98 50.4 3406 5069 150
    5×2/0 342 0.08 2.0 0.205 5.2 2.13 54.1 3596 5351 172
    5×3/0 418 0.08 2.0 0.220 5.6 2.27 57.6 4728 7035 200
    5×4/0 532 0.08 2.0 0.220 5.6 2.46 62.6 5512 8203 230
  • Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
