Type W Single Conductor Portable Power Cable 2kV



Applications :

  • These cables are designed for use on electric mining locomotives and other mobile equipment of the gathering-reel type, where the cable must withstand constant flexing and reeling.

Standards :

  • ICEA S-75-381/NEMA WC 58



    ASTM B 172



    ASTM B 33



    CAN/CSA C22.2 No. 96

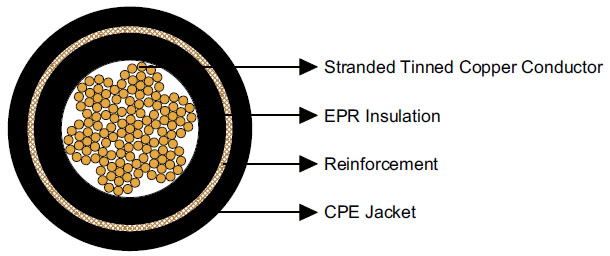

Construction :

  • Conductor Stranded annealed tinned copper conductor.
    Insulation Ethylene Propylene Rubber (EPR).
    Reinforcement A layer of polyester braid, applied between the insulation and jacket for mechanical strength.
    Jacket Heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.)

Options :

  • Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
  • Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties :

  • Minimum Bending Radius: 6×OD.
  • Maximum Conductor Operating Temperature: +90℃.

Dimensions and Weight :

  • Construction No. of
    Strands    		 Nominal Insulation
    Thickness    		 Nominal Jacket
    Thickness    		 Nominal Overall
    Diameter    		 Nominal Weight Ampacity
    No. of
    cores×AWG/kcmil    		 - inch mm inch mm inch mm lbs/kft kg/km A
    1×8 133 0.060 1.5 0.060 1.5 0.44 11.2 150 223 83
    1×6 168 0.060 1.5 0.080 2.0 0.51 13.0 205 305 109
    1×4 259 0.060 1.5 0.080 2.0 0.57 14.5 280 417 145
    1×3 329 0.060 1.5 0.095 2.4 0.63 16.0 350 521 167
    1×2 259 0.060 1.5 0.095 2.4 0.66 16.8 370 550 192
    1×1 329 0.080 2.0 0.110 2.8 0.74 18.8 500 744 223
    1×1/0 259 0.080 2.0 0.110 2.8 0.77 19.6 550 818 258
    1×2/0 329 0.080 2.0 0.110 2.8 0.82 20.1 660 982 298
    1×3/0 427 0.080 2.0 0.125 3.2 0.87 22.1 830 1235 345
    1×4/0 532 0.080 2.0 0.125 3.2 0.93 23.6 950 1413 400
    1×250 608 0.095 2.4 0.140 3.6 1.03 26.2 1240 1845 445
    1×300 741 0.095 2.4 0.140 3.6 1.09 27.7 1400 2083 500
    1×350 855 0.095 2.4 0.155 3.9 1.15 29.2 1480 2202 552
    1×500 1221 0.095 2.4 0.155 3.9 1.31 33.3 2140 3184 695
  • Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
