PVC Insulated Jumper Wires to IEC 60189-1 |
|
| |
| Applications |
|
| |
The jumper wires are used for interconnection between terminal blocks at main distribution frames (MDF), cross connection cabinets (CCP) and distribution frames or boxes. |
| Standards |
| |
• IEC 60189-1
• IEC 60332-1
• UL1581 Sec.VW-1 |

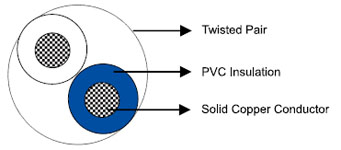

| Construction |
|
| |
Conductors: Solid annealed tinned copper 0.5/0.6/0.8mm as per IEC 60228 Class 1. |
| |
Insulation: PVC |
| |
Twisted Pairs: Insulated conductors are twisted into pairs with varying lays to minimize crosstalk. |
| |
| Electrical properties |
|
| |
| Nominal Conductor Diameter |
mm |
0.5 |
0.6 |
0.8 |
| Conductor Size |
mm2 |
0.196 |
0.283 |
0.5 |
| Maximum Conductor Resistance @20°C |
Ω/km |
98 |
66 |
35 |
| Minimum Insulation Resistance @500V DC |
MΩ.km |
50 |
50 |
50 |
| Nominal Insulation Thickness |
mm |
0.225 |
0.225 |
0.275 |
| Nominal Insulated Conductor Diameter |
mm |
0.95 |
1.05 |
1.35 |
|
| Mechanical and thermal properties |
| |
Temperature range during operation (fixed state) : -30°C – +70°C |
| |
Temperature range during installation (mobile state) : -20°C – +50°C |
| |
Minimum bending radius : 7.5 x Overall Diameter |
| Colour code |
| |
Standard colour code is per IEC 60189-1. |
| Dimensions and weight |
| |
| Cable Code |
Number of
Wires |
Nominal Insulation
Thickness
mm |
Maximum Overall
Diameter
mm |
Nominal Weight
kg/km |
| 0.5mm Conductor, 0.95mm Insulated Wire |
| TC189-Y-1W05 |
1 |
0.225 |
1.25 |
2.5 |
| TC189-Y-2W05 |
2 |
0.225 |
1.95 |
5.0 |
| TC189-Y-3W05 |
3 |
0.225 |
2.25 |
7.5 |
| TC189-Y-4W05 |
4 |
0.225 |
2.40 |
10.0 |
| TC189-Y-5W05 |
5 |
0.225 |
2.60 |
12.5 |
| 0.6mm Conductor, 1.05mm Insulated Wire |
| TC189-Y-1W06 |
1 |
0.225 |
1.45 |
3.0 |
| TC189-Y-2W06 |
2 |
0.225 |
2.15 |
6.0 |
| TC189-Y-3W06 |
3 |
0.225 |
3.0 |
9.0 |
| TC189-Y-4W06 |
4 |
0.225 |
3.4 |
12.0 |
| 0.8mm Conductor, 1.35mm Insulated Wire |
| TC189-Y-1W08 |
1 |
0.275 |
2.05 |
5.8 |
| TC189-Y-2W08 |
2 |
0.275 |
2.75 |
11.6 |
| TC189-Y-3W08 |
3 |
0.275 |
3.7 |
17.4 |
| TC189-Y-4W08 |
4 |
0.275 |
4.2 |
23.2 |
|
| |
|
