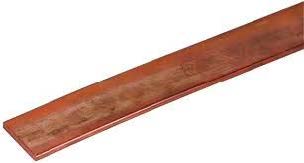

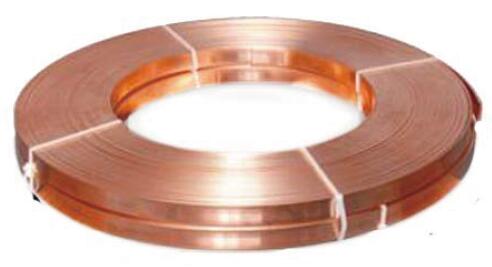

Flat Copper Tape / Bar
CCL-BCT
Application
Bare Copper Tape / Bar is used for both lightning and earthing protection - Our copper earth tapes / bars are annealed for ease of use with radiuses edges. These high conductivity bare copper tapes / bars are used on both lightning protection and earthing applications.
Standard
BS EN 13601(previously BS 1432-C101)
Construction
Raw Material: Pure copper
Appearance and surface quality: The surface shall be smooth and free from imperfection.
Width: 25~140mm
Thickness: 3~30mm
Copper Layer Purity : Minimum 99.9% pure
Glancing Flatness : 4mm/m
Technical Infomation
Melting Point | 1083°C |
Density | 8.94 g/cm^3 |
Specific heat | 385 J/Kg °K |
Thermal conductivity | 399 W/m°C |
Thermal expansion coefficient (20-200°C) | 17.3 x 10-6 |
Electrical conductivity | 101.5 % IACS |
Electrical resistivity | 0.017 microhm m |
Modulus of elasticity | 118000 N/mm^2 |
Construction Parameters
Part NO. | SIZE(mm) | Cross Section(mm^2) |
---|---|---|
CCL-BCT-5x30 | 30mm x 5mm | 150 mm^2 |
CCL-BCT-5x50 | 50mm x 5mm | 250 mm^2 |
