400Hz Airport Cables 7-core With Aluminium Wire Armour

Applications

These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.

Standards

  • BS 6724
  • BS 5467

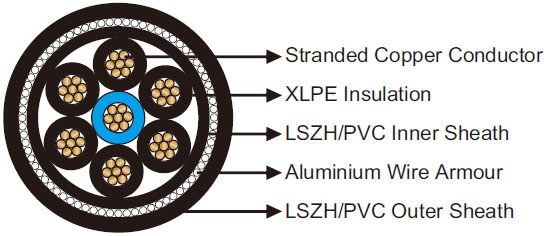

Construction

Airport Cable
Conductor Stranded bare copper conductor, Class 2.
Insulation XLPE.
Inner Sheath LSZH. PVC can be offered upon request.
Armour Aluminium wire armour.
Outer Sheath LSZH. PVC can be offered upon request.

Technical Data

Rated Voltage Uo/U (Um) 600/1000V
Operating Temperatures -40℃~+90℃
Minimum Bending Radius static: 9×OD; dynamic: 12×OD
Halogen Free Yes
No Corrosive & Toxic Gases Yes
Low Smoke Yes

Dimensions and Weight

Construction Nominal Diameter of Single Core Nominal Diameter Under Armour Nominal Diameter Over Armour Nominal Overall Diameter Nominal Weight
No. ×mm^2 mm mm mm mm kg/km
7×35 8.6 30.0 32.4 36.6 3355
