400Hz Airport Cables 7-core With Control Wires & Reinforcement

Applications

These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.

Standards

  • VDE 0295

Construction

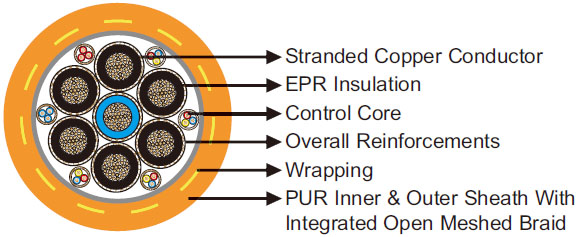

Airport Cable
Conductor Stranded bare copper conductor, Class 5/Class 6 to VDE 0295/IEC 60228.
Insulation EPR. HEPR/TPE /XLEPR can be offered upon request.
Control Core 1mm^2 stranded copper conductor with ethylene tetrafluorethylene insulation. Thermoplastic/TPE/polyolefin can be offered upon request.
Cable Assembling 6 power cores laid-up over a centre core, control cores laid-up in triads/quads located in outer interstices. Each core has an overall reinforcement.
Wrapping Common core covering of wrapping and/or extruded filling compound.
Outer Sheath Bonded inner and outer sheath of polyurethane with integrated open meshed braid.

Technical Data

Rated Voltage Uo/U (Um) 600/1000V
Operating Temperatures -20℃~+70℃
Minimum Bending Radius static: 4×OD; dynamic: 6×OD
Flame Retardant Yes
Abrasion Resistant Yes
Weather Resistant Yes
UV Resistant Yes
Oil Resistant Yes

Dimensions and Weight

Construction Nominal Diameter of Power Core Nominal Diameter of Control Core Nominal Overall Diameter Nominal Weight
No. ×mm^2 mm mm mm kg/km
7×25+6×(3×1) 9.6 1.8 38.3 2600
7×35+6×(3×1) 10.5 2.1 42.0 3100
7×25+6×(4×1) 9.6 1.8 42.0 2850
7×35+6×(4×1) 10.9 1.9 44.0 3050
7×50+6×(4×1) 11.8 2.1 51.0 4030
