FL2XCY

Applications

These cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers.

Standards

  • ENV 50213
  • IEC 50602-2

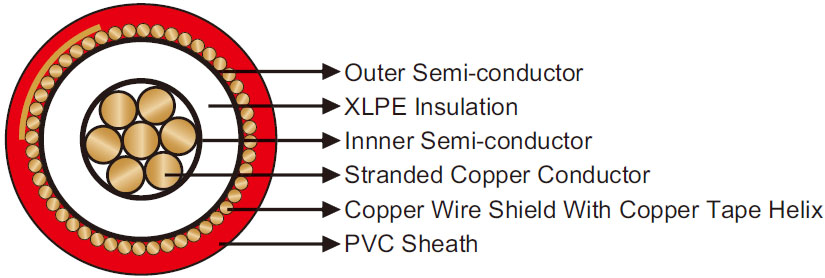

Construction

Airport Cable
Conductor Stranded bare copper conductor.
Inner Semi-Conductor Extruded semi-conducting compound.
Insulation XLPE.
Outer Semi-Conductor Extruded semi-conducting compound.
Shield Concentric layer of bare copper wires, counter helix of a copper tape.
Sheath PVC.

Technical Data

Rated Voltage Uo/U (Um) 6/10kV
Maximum Conductor Temperature 90℃
Short Circuit Temperature 250℃
Operating Temperatures -40℃~+90℃
Minimum Bending Radius 15×OD
Flame Retardant Yes
Impacted Resistant Yes
Weather Resistant Yes
Oil Resistant Yes

Dimensions and Weight

Construction Nominal Insulation Thickness Nominal Shield Cross Section Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
No. ×mm^2 mm mm^2 mm mm kg/km
1×6 3.5 6 1.4 15.6 420
