H07RN-F

Applications

These cables are used for connection between transformers and Airfield Lighting Equipment.

Standards

  • NF C 32-102-4
  • HD 22-4

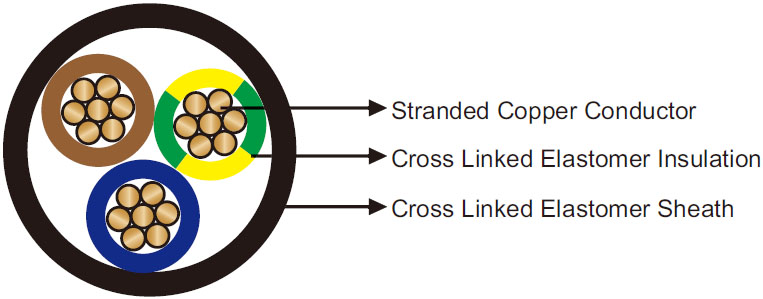

Construction

Airport Cable
Conductor Stranded bare copper.
Insulation Special cross linked elastomer.
Sheath Cross linked oil resistant elastomer.

Technical Data

Rated Voltage Uo/U (Um) 450/750V
Maximum Conductor Temperature 85℃
Short Circuit Temperature 200℃
Operating Temperatures -20℃~+85℃
Minimum Bending Radius static: 4×OD; dynamic: 8×OD
Impacted Resistant Yes
Weather Resistant Yes
Oil Resistant Yes

Dimensions and Weight

Construction Nominal Insulation Thickness Nominal Sheath Thickness Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm^2 mm mm mm mm kg/km
1×2.5 0.9 1.4 6.3 7.9 66
1×4 1.0 1.5 7.2 9.0 94
1×6 1.0 1.6 7.9 9.8 109
2×2.5 0.9 1.7 10.2 13.1 161
2×4 1.0 1.8 11.8 15.0 238
2×6 1.0 2.0 13.1 17.0 279
3×2.5 0.9 1.8 10.9 14.0 195
3×4 1.0 1.5 12.7 16.2 290
3×6 1.0 2.0 14.1 18.0 346
