RG7H1R for Airport Lighting

Applications

These cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers.

Standards

  • ENV 50213

Construction

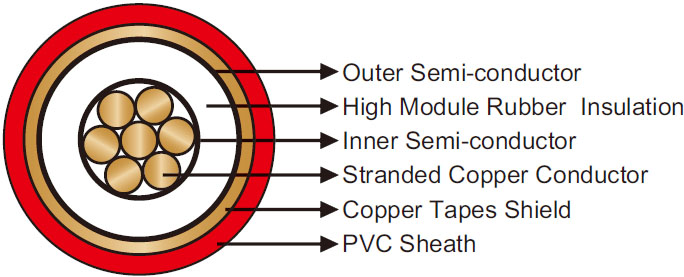

Airport Cable
Conductor Compact stranded bare copper conductor.
Inner Semi-Conductor Extruded semi-conducting compound.
Insulation High module rubber compound, G7 type.
Outer Semi-Conductor Extruded semi-conducting compound.
Shield Bare copper tapes.
Sheath PVC.

Technical Data

Rated Voltage Uo/U (Um) 3.6/6kV
Maximum Conductor Temperature 90℃
Short Circuit Temperature 250℃
Operating Temperatures 0℃~+90℃
Minimum Bending Radius 15×OD
Flame Retardant Yes

Dimensions and Weight

Construction Nominal Insulation Thickness Nominal Shield Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
No. ×mm^2 mm mm^2 mm mm kg/km
1×10 2.3 0.075 1.4 14.0 305
