Multicore Overall Screened Cables - Belden Equivalent 9418
Applications
These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.
Construction
| Conductor |
Tinned copper wire. |
| Insulation |
Semi-Rigid PVC. |
| Overall Screen |
Aluminium/Polyester tape. |
| Drain Wire |
Stranded tinned copper. |

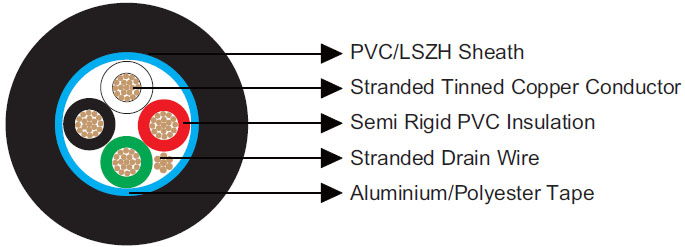

| Sheath |
PVC (V type)/LSZH (H type). |
| Insulation Colour |
Red, Green, Black, White. |
Electrical & Mechanical Characteristics
| AWG |
|
18 |
| Conductor Construction |
|
19x0.254 |
| UL Style |
|
2464 |
| Maximum Conductor Resistance |
Ω/km |
23 |
| Voltage Rating |
V |
300 |
| Nominal Capacitance Conductor to Conductor |
pF/m |
131 |
| Nominal Capacitance Conductor to Screen |
pF/m |
236 |
| Bending Radius |
|
10xOverall Diameter |
| Operating Temperature |
℃ |
-20~80 |
Dimensions
| Ordering Code |
No. of Cores |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
| |
|
mm |
mm |
mm |
| BE119418V |
4 |
0.28 |
0.89 |
6.2 |
| BE119418H |
4 |
0.28 |
0.89 |
6.2 |
