Multipair Overall Screened Cables - Belden Equivalent 8641

Applications

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a stranded tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

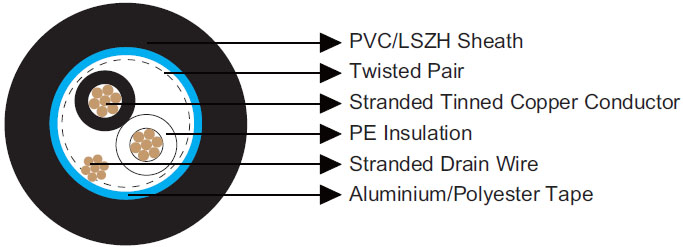

Construction

Belden Equivalent 8641
Conductor Tinned copper wire.
Insulation PE.
Overall Screen Aluminium/Polyester tape.
Drain Wire Tinned copper wire.
Sheath PVC (V type)/LSZH (H type).
Insulation Colour Black, Clear.

Electrical & Mechanical Characteristics

AWG   24
Conductor Construction   7x0.2
UL Style   2092
Maximum Conductor Resistance Ω/km 85
Voltage Rating V 300
Nominal Capacitance Conductor to Conductor pF/m 72
Nominal Capacitance Conductor to Screen pF/m 138
Bending Radius   10xOverall Diameter
Operating Temperature -20~80

Dimensions

Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE118641V 1 0.41 0.64 4.3
BE118641H 1 0.41 0.64 4.3
