Multipair Overall Screened Cables - Belden Equivalent 8720

Applications

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

Construction

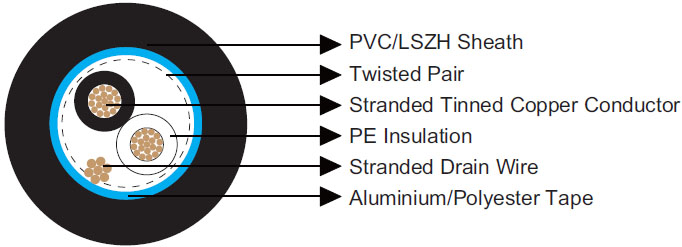

Belden Equivalent 8720
Conductor Tinned copper wire.
Insulation PE.
Overall Screen Aluminium/Polyester tape.
Drain Wire Tinned copper wire.
Sheath PVC (V type)/LSZH (H type).
Insulation Colour Black, Clear.

Electrical & Mechanical Characteristics

AWG   14
Conductor Construction   19x0.36
UL Style   20253
Maximum Conductor Resistance Ω/km 10
Voltage Rating V 600
Nominal Capacitance Conductor to Conductor pF/m 79
Nominal Capacitance Conductor to Screen pF/m 154
Bending Radius   10xOverall Diameter
Operating Temperature -20~80

Dimensions

Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE118720V 1 0.81 0.89 9.0
BE118720H 1 0.81 0.89 9.0
