Multipair Overall Screened Cables - Belden Equivalent 9515

Applications

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.

Construction

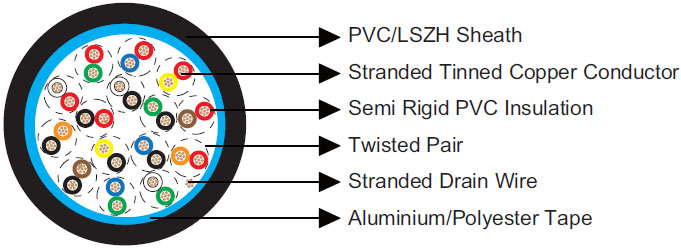

Belden Equivalent 9515
Conductor Tinned copper wire.
Insulation Semi-Rigid PVC.
Overall Screen Aluminium/Polyester tape.
Drain Wire Tinned copper wire.
Sheath PVC (V type)/LSZH (H type).
Insulation Colour Black/Red, Black/White, Black/Green, Black/Blue, Black/Yellow, Black/Brown, Black/Orange, Red/White, Red/Green, Red/Blue, Red/Yellow, Red/Brown, Red/Orange, Green/White, Green/Blue.

Electrical & Mechanical Characteristics

AWG   24
Conductor Construction   7x0.2
UL Style   2464
Maximum Conductor Resistance Ω/km 85
Voltage Rating V 300
Nominal Capacitance Conductor to Conductor pF/m 98
Nominal Capacitance Conductor to Screen pF/m 164
Bending Radius   10xOverall Diameter
Operating Temperature -30~80

Dimensions

Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE119515V 15 0.25 1.02 10.6
BE119515H 15 0.25 1.02 10.6
