1x RG59 + 2x1x2x22AWG Data Pairs SWB LSZH Sheathed Composite Cable

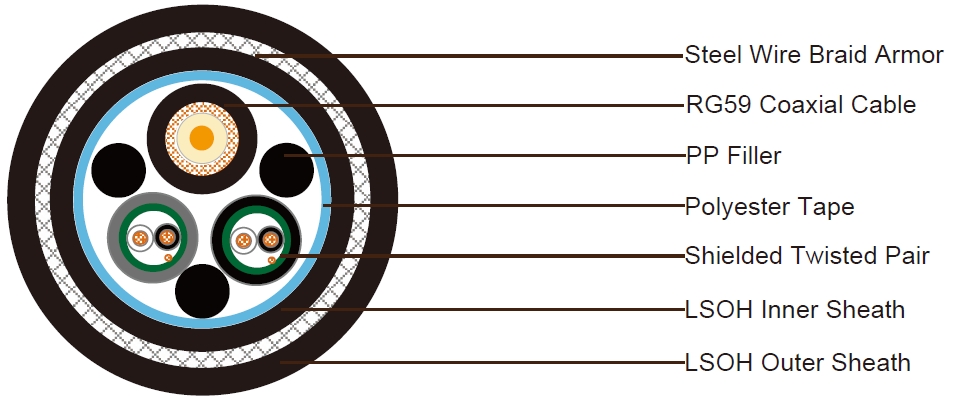

Construction:

Composite Cable

1x75Ohm RG59 Coaxial Cable

Conductor 0.58mm Solid copper conductor
Insulation Polyethylene.Thickness1.56mm
Shield Braid of bare copper wire. Coverage ≥ 95%
Sheath LSZH sheath. Nominal outer diameter 6.15mm
Sheath Color Black

2x1x2x22AWG Shielded Twisted Pair (around coaxial cable)

Conductor 7/0.254mm
Insulation PVC material.Thickness0.4mm
Insulation Color Black and white
Shield Aluminium polyester tape
Drain Wire 7/0.2mm drain wire
Sheath LSZH sheath. Nominal outer diameter 4.8mm.
Sheath Color Black and Grey

Element Assembly

Filler PP material
Wrapping Tape Polyester tape
Inner Sheath Black LSZH, thickness 0.8mm
Armor Steel wire braid, coverage 85%
Outer Sheath LSZH, thickness 1.5mm, nominal outer diameter18.5mm
Sheath Color Black

Electrical and Physical Properties@20°C:

Coaxial Cable

  • Impedance: 75±3Ohm (@1MHz)
  • Nominal Attenuation: 8.2dB/100m @50MHz

Data Cable

  • Electrical Resistance: 48.4Ohm/km

Element Assembly

  • Min Bending Radius: 420mm
  • Operating Temperature: -35°C/+80°C

Fire Performance:

  • Low Smoke Capacity:IEC61034-1/2
  • Halogen Free:IEC60754-1/2
  • Flame Propagation: IEC60332
