1xRG59 + 3x1.5 Power Cable + 6x1x2x24AWG Shielded Control Cable Without Sheath SWB LSZH Sheathed Composite Cable

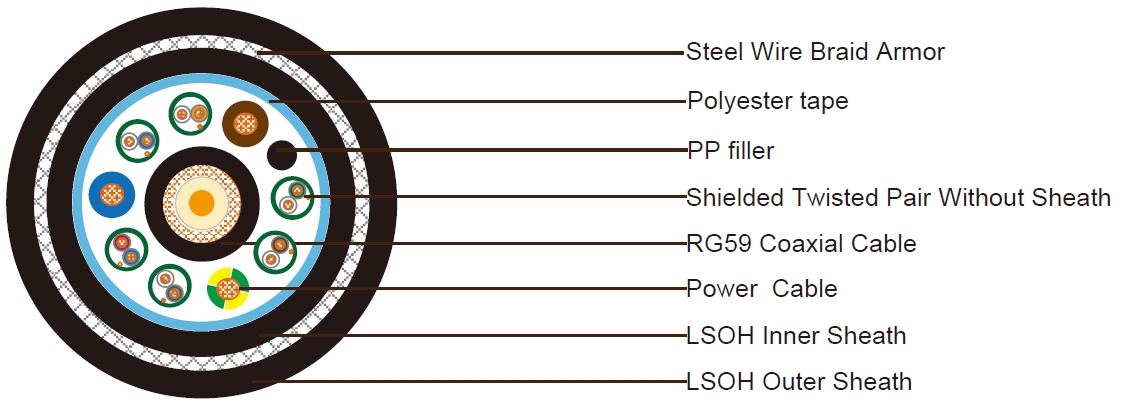

Construction:

Composite Cable

1x75Ohm RG59 Coaxial Cable(in the center of the cable core)

Conductor 0.58mm Solid coppe rconductor
Insulation Polyethylene.Thickness1.56mm
Shield Braid of bare copper wire. Coverage ≥ 95%
Sheath LSZH sheath. Nominal outer diameter 6.15mm
Sheath Color Black

6x1x2x24 AWG Shielded Control Cable Without Sheath

Conductor 7/0.2mm
Insulation PVC material. Thickness 0.4mm
Insulation Color White and blue, White and orange, White and green, White and brown,
White and grey, Red and blue according to IEC60708-1
Shield Aluminium polyester tape
Drain Wire 24 AWG drain wire

3x1.5mm^2 Power Cable

Conductor wire to IEC 60228 Class 2 or BS 6360
Insulation XLPE compound to BS6234. Nominal outer diameter 3.0mm
Insulation Color Blue, Brown and Green/Yellow

Element Assembly

Filler PP, PVC or PE
Wrapping Tape Polyester tape
Inner Sheath Black LSZH, thickness 0.76mm
Armor 0.2mm Steel wire braid,coverage 95%
Outer Sheath LSZH, thickness 1.4mm, nominal outer diameter is 22.6mm
Sheath Color Black

Electrical and Physical Properties@20°C:

  • Min Bending Radius:360mm
  • Operating Temperature: -35°C/+90°C

Fire Performance:

  • Low Smoke Capacity:IEC61034-1/2
  • Halogen Free:IEC60754-1/2
  • Flame Propagation: IEC60332
