1xRG59 + 3x3 Power Cable + 2x1x2x24AWG Shielded Control Cable Unarmored LSZH Sheathed Composite Cable

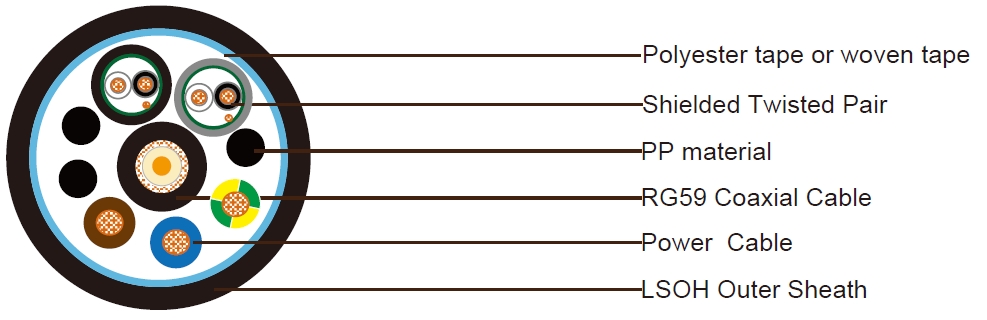

Construction:

Composite Cable

1x75Ohm RG59 Coaxial Cable(in the center of the cable core)

Conductor 0.58mm Solid coppe rconductor
Insulation Polyethylene.Thickness1.56mm
Shield Braid of bare copper wire. Coverage ≥ 95%
Sheath LSZH sheath. Nominal outer diameter 6.15mm
Sheath Color Black

2x1x2x24 AWG Shielded Control Cable

Conductor 7/0.2mm
Insulation PVC material. Thickness 0.47mm
Insulation Color Black and white
Shield Aluminium polyester tape
Drain Wire 24 AWG drain wire
Sheath LSZH sheath. Nominal outer diameter 4.8mm. Thickness 0.76mm
Sheath Color Black and Grey

3x3mm^2 Power Cable

Conductor 3mm^2 wire to IEC 60228 Class 2 or BS 6360
Insulation XLPE, Thickness 0.66mm. Outer diameter 3.63mm
Insulation Color Blue, Brown and Green/Yellow

Element Assembly

Filler PP, PVC or PE
Wrapping Tape Polyester tape
Outer Sheath LSZH, thickness 1.2mm, nominal outer diameter is 18.5mm
Sheath Color Black

Electrical and Physical Properties@20°C:

  • Min Bending Radius:200mm
  • Operating Temperature: -35°C/+90°C

Fire Performance:

  • Flame Propagation: IEC60332 part 1&2
