1xRG11 + 3x3 Power Cable + 2x1x2x24AWG Data Pairs SWA LSZH Sheathed Composite Cable

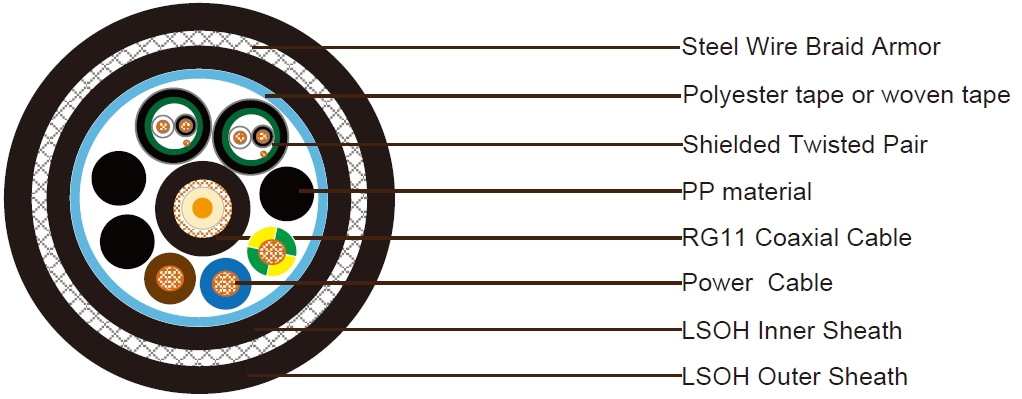

Construction:
1x75Ohm RG11 Coaxial Cable ( in the center of the cable core)
| Conductor | 1.63mm Solid bare copper |
| Insulation | Polyethylene.Thickness 7.25mm. |
| Shield | Braid of bare copper wire.Coverage95% |
| Sheath | PVCsheath. Nominal outer diameter is10.3mm. |
| Sheath Color | Black |
2x1x2x24AWG Shielded Twisted Pair ( around coaxial cable)
| Conductor | 7/0.2mm Stranded tinned copper. |
| Insulation | PVC material.Thickness 0.47mm. |
| Insulation Color | White andblack |
| Individual Shield | Aluminum polyester tape |
| Drain Wire | 24AWG Stranded tinned copper |
| Sheath | LSZH sheath.Nominal outer diameter 4.8mm.Thickness0.76mm. |
| Sheath Color | BlackandGrey |
3x3mm^2 Power Cable ( around coaxial cable)
| Conductor | 3mm² Stranded tinned copper wire. |
| Insulation | XLPE.Thickness0.85mm.Outer diameter 3.65mm |
| Insulation Color | Blue,Brown and Green/Yellow |
Element Assembly
| Filler | PP material(around coaxial cable) |
| WrappingTape | Polyester tape. | Inner Sheath | BlackLSZH,thickness0.8mm |
| Armor | Stainless steel wire braid, coverage 85% |
| Outer Sheath | LSZH,thickness1.5mm,Nominal outer diameter 26.0mm |
| Sheath Color | Black |
Electrical and Physical Properties@20°C:
Coaxial Cable
- Impedance: 75±3Ohm (@1MHz)
- Max.Attenuation:3.3dB/100m @50MHz
Power Cable
- ElectricalResistance:6.6Ohm/km
- Insulation Resistance: ≥5500 MOhmxkm
Data Pairs
- Electrical Resistance: 90Ohm/km
- Insulation Resistance: ≥1000 MOhmxkm
Element Assembly
- Min Bending Radius:420mm
- Operating Temperature:-35°C/+80°C
Fire Performance:
- Flame Propagation:IEC60332-1
- Low Smoke Capacity:IEC61034-1/2
- Halogen Free:IEC60754-1/2
