Fire Resistant, Unarmored 20 Conductors UV Resistant, Flame Retardant LSZH Composite Cable

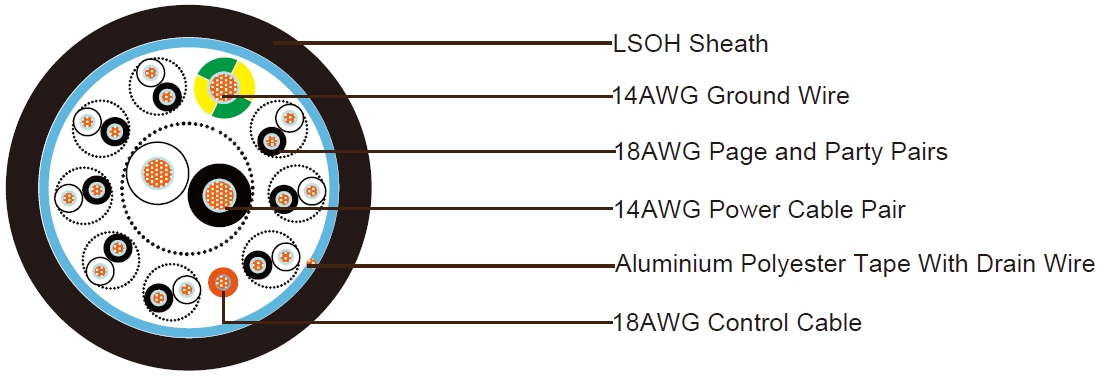

Construction:

Composite Cable

1 Pair Power cable and 1 ground wire

Conductor 14AWG (19/0.361mm) annealed copper
Fire Barrier Mica/Glass Tape
Insulation XLPE material. Thickness 0.7mm
Insulation Color Black and white
Ground wire color Yellow-Green

8 Party Line and Spare Pair, 1 control wire

Conductor 18AWG (19/0.254mm) annealed copper
Fire Barrier Mica/Glass Tape
Insulation XLPE material. Thickness 0.7mm
Insulation Pair Color Black & White with Pair Number
Control wire color Orange

Element Assembly

Core make-up The power pair, ground wire, Party Line and Spare Pair, and control wire
are twistedtogether. Fillers will be used if necessary.
Binder tape The polyester tape is wrapped over the cable cores
Sheath UV Resistant, Flame Retardant LSZH, Thickness 1.5mm, Overall diameter 29.5±2.0mm
Sheath Color Black
Weight 566kg/km

Electrical and Physical Properties@20°C:

Power Pair, Ground Wire

  • Max. Conductor Resistance: 8.9Ohm/km at 20oC
  • Insulation Resistance: ≥1000 MOhmxkm

Control Pair, Ground Wire

  • Max. Conductor Resistance: 17.9Ohm/km at 20oC
  • Insulation Resistance: ≥1000 MOhmxkm
  • Operating Temperature: -20°C/+90°C
  • Voltage Rating: 600/1000V

Fire Characteristics:

  • Fire Resistance: IEC 60331
  • Flame Propagation: IEC60332-1 & IEC60332-3C
  • Low Smoke Capacity: IEC61034-1/2
  • Halogen Free: IEC60754-1/2
