1xRG59 + 3x2.5 Power cable + 2x2x24AWG RS485 + 1x2x18AWG Audio Cable SWB LSZH Sheathed Composite Cable
Construction:
1x75Ohm RG59 Coaxial Cable
| Conductor | 0.81mm Copper Covered Steel Wire | Insulation | Polyethylene. Diameter 3.65mm. | Shield | Bonded Al screen and braid of Al-Mg wire. Coverage:80% | Sheath | LSZH sheath. Nominal outer diameter is 6.1mm | Sheath Color | Black |
24AWG RS485
| Conductor | 24AWG (7/0.2mm to IEC 60228 Class2 2 pairs | Insulation | Polyethylene. Thickness 0.6mm | Shield | Aluminum polyester tape | Drain Wire | 24 AWG | Sheath | LSZH sheath. Nominal outer diameter is 9.0mm | Sheath Color | Black |
3x2.5mm² Power Cable ( around coaxial cable)
| Conductor | 2.5mm² Stranded tinned copper wire. |
| Insulation | XLPE. Thickness 0.7mm |
| Sheath | LSZH sheath. Nominal outer diameter is 12.0mm |
| Sheath Color | Black |
18AWG Audio Cable
| Conductor | 1 pair 18AWG (16/0.254mm |
| Insulation | Polyethylene. |
| Shield | Aluminum polyester tape |
| Drain Wire | 24 AWG |
| Sheath | LSZH sheath. Nominal outer diameter is 6.5mm |
| Sheath Color | Black |

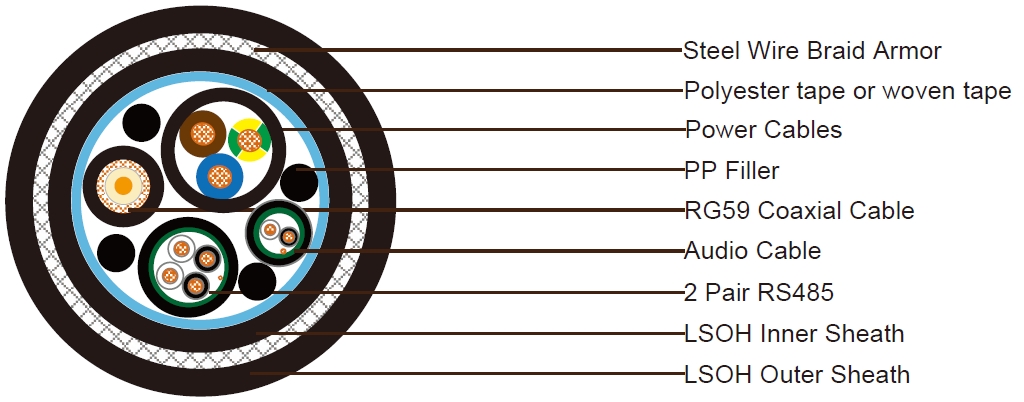

Element Assembly
| Filler | PP, PVC or PE |
| Wrapping Tape | Polyester tape or woven tape |
| Inner Sheath | Black LSZH, thickness 0.8-1.0mm |
| Armor | Steel wire braid,coverage 95% |
| Outer Sheath | LSZH, thickness 1.6- 1.8mm, nominal outer diameter is 24±2mm |
| Sheath Color | Black |
| Cable Weight | 730kg/km |
Electrical and Physical Properties@20°C:
Coaxial Cable
- Impedance: 75±3Ohm (@1MHz)
- Nominal Attenuation: 6.72dB/100m @50MHz
RS485
- Nominal Impedance: 120±10Ω
- Nominal Conductor DC Resistance @20°C: 78.7 Ohm/km
- Nominal Attenuation: 1MHz 2.3dB/100m
Power Cable
- Electrical Resistance: 7.41Ohm/km
- Insulation Resistance: ≥5500 MOhmxkm
Audio Cable
- Electrical Resistance: 18.1Ohm/km
- Insulation Resistance: ≥1.1 MOhm .km
Element Assembly
- Min Bending Radius: 360mm
- Operating Temperature: -35°C/+90°C
Fire Performance:
- Low Smoke Capacity:IEC61034-1/2
- Halogen Free:IEC60754-1/2
- Flame Propagation: IEC60332
