Flame Retardant Multi Loose Tube Fiber Optic Cables

APPLICATION

The multi loose tube non metallic cables are designed for outside plant, which is prone to electrical interference. They are mainly installed inside buildings, tunnels,subways or closed areas in general, specially designed to guarantee the signal transmission even in case of fire. The cable can also be used for direct burial for armoured version.

STANDARDS

  • Basic design adapted to Telcordia GR-20 / RUS 7 CFR 1755.900 (REA PE-90) / ICEA S 87-640

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1*
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

CABLE CONSTRUCTION

Fibers Singlemode and multimode fibers, with loose tube technology
Structure The cable consists of 5 to 36 fibers containing tubes or fillers stranded in up to 3 layers around a central strength member and bound under a LSZH sheath. Each tube contains 4 -12 fibers, which is filled with water blocking gel
Central Strength Member Solid or stranded steel wire coated with polyethylene is usually used as central strength member. Fiber glass reinforced plastics (FRP) will be used as central strength member if non metallic construction is required
Water blocking The jelly filled tube is waterblocked by using swellable tape and thread
Reinforcement Either aramid yarn or fiber glass is wound around the tube to provide physical protection and tensile strength, with added fire protection
Armouring(optional) For diect burial, either galvanized steel wire braid, corrugated steel tape armour or galvanized steel wire armour is applied over an inner polyethylene or LSZH sheath. For steel tape armour, the 0.15mm thick steel tape is coated with a copolymer and applied with an overlap. For steel wire braid or armour, single layer of galvanized steel wire braid or armour is applied
Moisture Barrier Tape (optional) An aluminum moisture tape can be incorporated under the sheath for water blocking and shielding purpose
Ripcord (optional) An optional ripcord can be located under the jacket to facilitate jacket removal.
Outer Sheath Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1(Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option

FIBER COLOUR CODE

Fiber colour code 1 Red 7 Brown
  2 Green 8 Violet
  3 Blue 9 Turquoise
  4 Yellow 10 Black
  5 White 11 Orange
  6 Grey 12 Pink

CONSTRUCTION

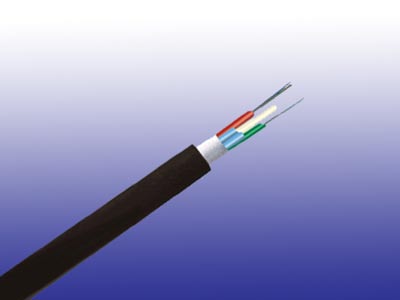

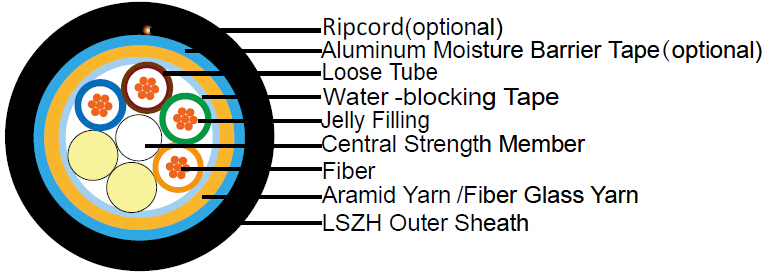

Unarmoured Type

images/Fire Retardant Multi loose tube-unarmoured type fiber cables.jpg images/FR Multi loose tube-unarmoured type fiber cables.jpg

CONSTRUCTION PARAMETERS

Cable Code Fiber Count Tube Diameter Nominal Overall Diameter Approx.Weight Tension Load Crush
(n°) mm mm kg/km N N/100mm
MLA-B-C×D-F-H-J 72 2.5 15.0 230 4000 3000
MLA-B-C×D-F-H-J 96 2.5 16.5 250 4000 3000
MLA-B-C×D-F-H-J 144 2.5 20.5 280 4000 3000

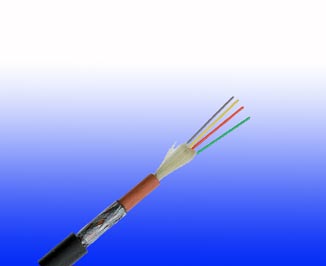

Steel Wire Braid

../../Fire Retardant LSOH Sheathed Cables(FIRETOX)/Fire Retardant Fiber Optic Cables/images/Fire Retardant Multi loose tube-steel wire braid fiber cables.jpg ../../Fire Retardant LSOH Sheathed Cables(FIRETOX)/Fire Retardant Fiber Optic Cables/images/FR Multi loose tube-steel wire braid fiber cables.jpg

CONSTRUCTION PARAMETERS

Cable Code Fiber Count Tube Diameter Nominal Overall Diameter Approx.Weight Tension Load Crush
(n°) mm mm kg/km N N/100mm
MLA-B-C×D-F-2Y(SWB)H-J 72 2.5 15.0 280 3000 3500
MLA-B-C×D-F-2Y(SWB)H-J 96 2.5 17.5 310 3000 3500
MLA-B-C×D-F-2Y(SWB)H-J 144 2.5 21.5 350 3500 3500

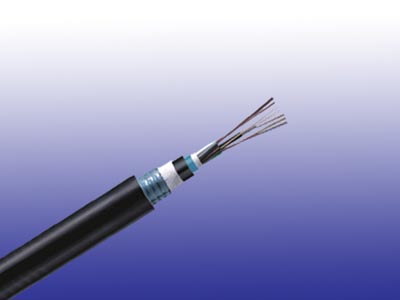

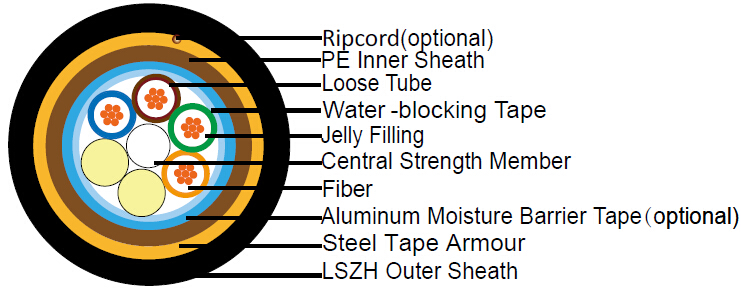

Corrugated Steel Tape Armour

../../Fire Retardant LSOH Sheathed Cables(FIRETOX)/Fire Retardant Fiber Optic Cables/images/Fire Retardant multi loose tube-Corrugated steel tape armour fiber cables.jpg ../../Fire Retardant LSOH Sheathed Cables(FIRETOX)/Fire Retardant Fiber Optic Cables/images/FR multi loose tube-Corrugated steel tape armour fiber cables.jpg

CONSTRUCTION PARAMETERS

Cable Code Fiber Count Tube Diameter Nominal Overall Diameter Approx.Weight Tension Load Crush
(n°) mm mm kg/km N N/100mm
MLA-B-C×D-F-2Y(STA)H-J 72 2.5 16.5 290 3000 7500
MLA-B-C×D-F-2Y(STA)H-J 96 2.5 18.5 350 3000 7500
MLA-B-C×D-F-2Y(STA)H-J 144 2.5 22.5 450 3500 7500

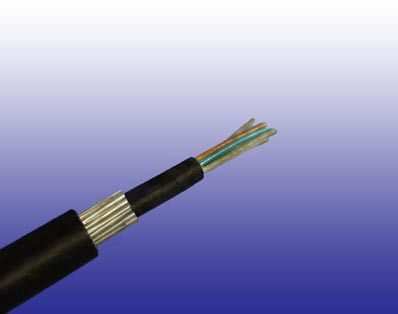

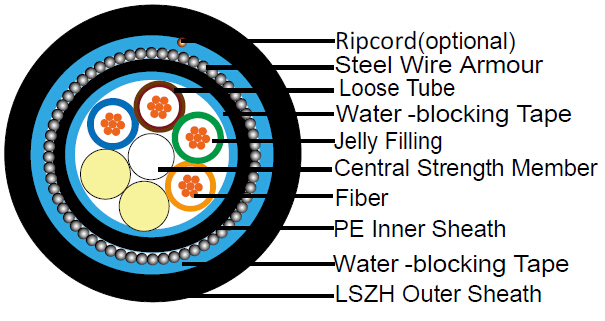

Steel Wire Armour

images/Fire Retardant Multi loose tube-steel wire armour fiber cables.jpg images/FR Multi loose tube-steel wire armour fiber cables.jpg

CONSTRUCTION PARAMETERS

Cable Code Fiber Count Tube Diameter Nominal Overall Diameter Approx.Weight Tension Load Crush
(n°) mm mm kg/km N N/100mm
MLA-B-C×D-F-2Y(SWA)H-J 72 2.0 15.0 360 3500 5000
MLA-B-C×D-F-2Y(SWA)H-J 96 2.0 16.5 390 4000 5000
MLA-B-C×D-F-2Y(SWA)H-J 144 2.0 18.5 430 4500 5000

PHYSICAL AND THERMAL PROPERTIES

Temperature range during operation: -30°C - +70°C
Temperature range during storage: -50°C - +70°C
Minimum bending radius: 10 x Overall Diameter (unarmoured cables)
20 x Overall Diameter (armoured cables)

Temperature range during operation -30°C - +70°C
Temperature range during storage -50°C - +70°C
Minimum Operation Bending Radius

10 x Overall Diameter (unarmoured cables);

20 x Overall Diameter (armoured cables)

MECHANICAL PROPERTIES

Maximum Compressive Load 4000N for unarmoured cables 6000N for armoured cables
Repeated Impact 4.4 N.m (J)
Twist (Torsion) 180×10 times, 125×OD
Cyclic Flexing 25 cycles for armoured cables 100 cycles for unarmoured cables
Crush Resistance 220N/cm(125lb/in)

FIBER COMPLIANCE

Temperature Cycling IEC60794-1-2-F2
Tensile Strength IEC60794-1-2-E1A
Crush IEC60794-1-2-E3
Impact IEC60794-1-2-E4
Repeated Bending IEC60794-1-2-E6
Torsion IEC60794-1-2-E7
Kink IEC60794-1-2-E10
Cable Bend IEC60794-1-2-E11
Cool Bend IEC60794-1-2-E11
