FRA 155/S EMC Screened Multicore

Applications

Multicore cable with very high resistance to temperature designed for internal wiring in lamps, heating appliances and distribution boxes in apparatus, mechanical and plant engineering, etc. Used for fixed and flexible application in dry, humid and wet rooms.

Standards

  • EN45545-2
  • IEC 60332-1, EN 50265-2-1 (flame retardant)
  • EN 50266-2 (non-flame propagating)

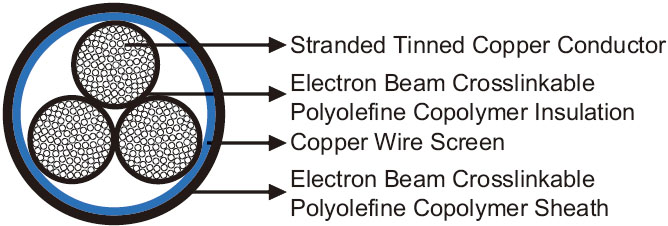

Construction

GKW Traction & High Temperature Cables FRA 155/S EMC Screened Multicore
Conductors Class 5 stranded tinned copper to IEC60228/VDE 0295.
Insulation Electron beam crosslinkable polyolefine copolymer.
Screen Copper wire screen.
Sheath Electron beam crosslinkable polyolefine copolymer.

Electrical Characteristics at 20 °C

Nominal Conductor Cross Section mm^2 0.25 0.50 1.5 2.5
Maximum Conductor Resistance Ω/km 85.9 40.1 13.7 8.21
Voltage Rating V 450/750V (≤0.5mm^2); 600/1000V (>0.5mm^2)

Mechanical and Thermal Properties

Minimum Bending Radius 4xOD (Static); 6xOD (Flexing)
Temperature Range -55℃ ~+155℃ (Static); -40℃ ~+120℃ (Flexing)
Short Circuit Temperature +280℃

Dimensions and Weight

No. of cores& Nominal Conductor Cross Sectional Area Number and Nominal Diameter of Strands Nominal Insulation Thickness Nominal Overall Diameter Nominal Weight
No.×mm^2 No./mm mm mm kg/km
2×0.25 19/0.12 0.5 5.1 34
6×0.25 19/0.12 0.5 7.0 67
4×2×0.25 19/0.12 0.5 14.0 277
4×0.5 19/0.18 0.5 7.6 76
16×0.5 19/0.18 0.5 11.6 206
3G1.5 30/0.25 0.6 8.7 119
10G1.5 30/0.25 0.6 14.7 332
16G1.5 30/0.25 0.6 22.0 740
8G2.5 50/0.25 0.7 18.0 498
9G2.5 50/0.25 0.7 18.6 518
