V75 PVC Ordinary Duty Flexible Cord, 250/400V
Application
These cables are suitable for installation in dry applications only, in conduit or enclosures, such as switchboards, control panels, appliances and electrical equipment. such as radios, desk lamps and office machines, etc. Also they are used for extension leads in sizes 1 mm^2 and above.
Multicore cords containing an E core are suitable for a number of applications in dry and damp conditions, such as domestic appliances (washing machines, dishwashers). Leads for industrial and office equipment requiring a three-phase supply and an earth connection.
Standard

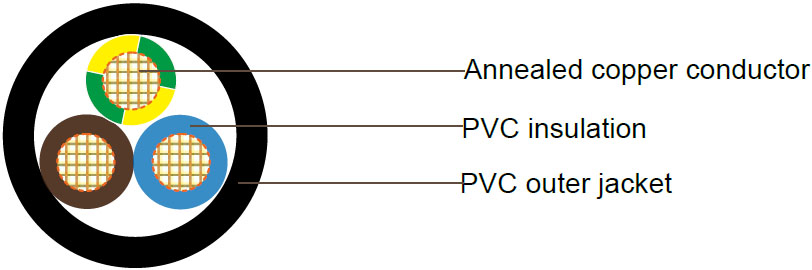

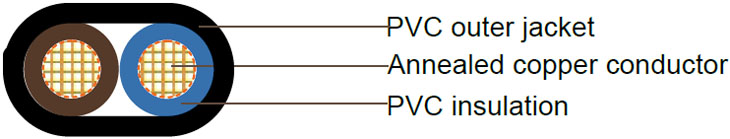

Cable Construction
| Conductor |
Annealed copper conductor to AS/NZS 1125 |
| |
Maximum continuous operating temperature: 75°C |
| Insulation |
V-75 PVC |
| Colours |
1C - Red, White, Light Blue, Black |
| |
2C - Brown, Light Blue |
| |
3C - Brown, Light Blue, Green/Yellow |
| |
4C - Brown, Light Blue, White, Green/Yellow |
| |
5C - Brown, Light Blue, Orange, White, Green/Yellow |
| Sheath |
4V-75 PVC |
| Colours |
Grey, White, Black, Orange |
Technical Characteristics
| Conductor Size |
Current Carrying Capacity |
Max. DC Resistance |
Max. AC Resistance |
Single Phase Voltage Drop |
| mm^2 |
A |
Ohm/km @ 20 °C |
Ohm/km @ 90 °C |
MV/A.m |
| 0.5 |
3 |
39.0 |
47.4 |
94.7 |
| 0.75 |
7.5 |
26.0 |
31.6 |
63.2 |
| 1.0 |
10 |
19.5 |
23.7 |
47.5 |
| 1.5 |
16 |
13.3 |
16.2 |
32.3 |
| 2.5 |
20 |
7.98 |
9.70 |
19.4 |
| 4.0 |
25 |
4.95 |
6.02 |
12.0 |
Cable Parameter
| Conductor Size |
No.of cores |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal O.D. |
Approx. Cable Weight |
| mm^2 |
|
mm |
mm |
mm |
kg/100m |
| Round |
| 0.5 |
1 |
0.6 |
- |
2.2 |
0.9 |
| 0.75 |
1 |
0.6 |
- |
2.4 |
1.2 |
| 1.0 |
1 |
0.6 |
- |
2.5 |
1.5 |
| 1.5 |
1 |
0.7 |
- |
3.0 |
2.1 |
| 2.5 |
1 |
0.8 |
- |
3.7 |
3.4 |
| 4 |
1 |
0.8 |
- |
4.2 |
4.8 |
| Flat |
| 0.5 |
2 |
0.6 |
0.8 |
6.0×3.9 |
3.6 |
| 0.75 |
2 |
0.6 |
0.8 |
6.4×4.1 |
4.3 |
| Round |
| 0.75 |
2 |
0.6 |
0.8 |
6.4 |
5.7 |
| 1.0 |
2 |
0.6 |
0.8 |
6.7 |
6.5 |
| 1.5 |
2 |
0.7 |
0.8 |
7.7 |
8.9 |
| 2.5 |
2 |
0.8 |
1.0 |
9.4 |
14 |
| 4 |
2 |
0.8 |
1.0 |
10.5 |
18 |
| 0.75 |
3 |
0.6 |
0.8 |
6.8 |
6.8 |
| 1.0 |
3 |
0.6 |
0.8 |
7.1 |
7.9 |
| 1.5 |
3 |
0.7 |
0.9 |
8.4 |
11 |
| 2.5 |
3 |
0.8 |
1.1 |
10.2 |
17 |
| 4 |
3 |
0.8 |
1.1 |
11.4 |
23 |
| 0.75 |
4 |
0.6 |
0.8 |
7.4 |
8.2 |
| 1.0 |
4 |
0.6 |
0.9 |
8.0 |
9.9 |
| 1.5 |
4 |
0.7 |
1.0 |
9.4 |
14 |
| 2.5 |
4 |
0.8 |
1.1 |
11.2 |
21 |
| 4 |
4 |
0.8 |
1.1 |
12.5 |
29 |
| 0.75 |
5 |
0.6 |
0.9 |
8.3 |
10 |
| 1.0 |
5 |
0.6 |
0.9 |
8.7 |
12 |
| 1.5 |
5 |
0.7 |
1.1 |
10.5 |
17 |
| 2.5 |
5 |
0.8 |
1.2 |
12.4 |
26 |
| 4 |
5 |
0.8 |
1.3 |
14.1 |
36 |
