318B to BS 6500
Application and Description
These cables may be used as an indoor general wiring cable primarily for installations in public areas. Examples include use on pendant lighting drops or as a general supply lead within hospital or airport projects. They are suitable for installations where fire, smoke emission and toxic fumes create a potential threat to life and equipment. 318B is equivalent to harmonized code H05Z1Z1-F.

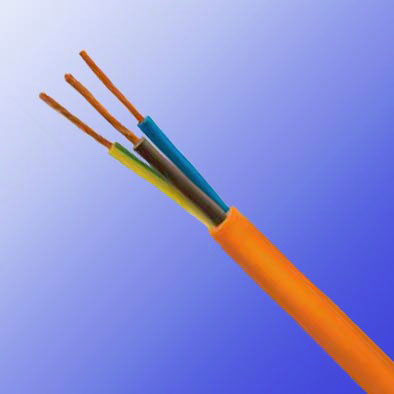

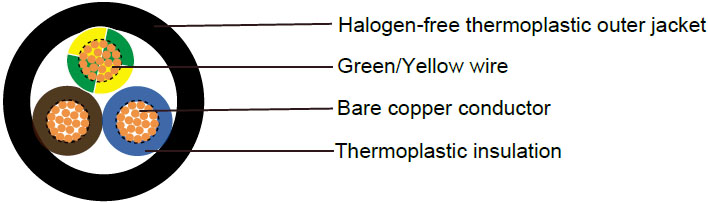

Cable Construction
| Fine bare copper strands |
| Stranding to BS 6360 Class 5 or IEC 60228 Class 5 |
| Halogen-fee thermoplastic TI6 core insulation |
| Green/Yellow grounding (3 conductors and above) |
| Halogen-fee thermoplastic TM7 outer jacket |
Core Identification
| 2 Cores |
Brown, Blue |
| 3 cores |
Brown, Blue and Green/Yellow |
| 4 cores |
Brown, Grey, Black and Green/Yellow |
| 5 Cores |
Brown, Blue, Grey, Black and Green/Yellow |
Technical Characteristics
| Working voltage |
300/500 volts |
| Test voltage |
2500 volts |
| Flexing bending radius |
6xOverall diameter |
| Fixed bending radius |
4xOverall diameter |
| Operating temperature |
-30 oC to +90 oC |
| Short circuit temperature |
+160 oC |
| Insulation resistance |
20 MΩxkm |
| |
Halogen free acc. to EN 50267-2-1 / IEC 60754-1 |
| |
Smoke density acc. to EN 50268-2 / IEC 61034-2 |
| |
Corrosivity of gases acc. to EN 50267-2-2, IEC 60754-2 |
| |
Flame retardancy acc. to EN 50265-2-1, IEC 60332-1 |
Cable Parameter
| AWG (No of Strands/Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area |
Nominal thickness of insulation |
Nominal thickness of sheath |
Nominal overall Diameter |
Nominal
Copper
Weight |
Nominal Weight |
| #xmm^2 |
mm |
mm |
mm |
kg/km |
kg/km |
| 3182B |
| 18(24/32) |
2x0.75 |
0.6 |
0.8 |
6.2 |
14.4 |
58 |
| 17(32/32) |
2x1 |
0.6 |
0.8 |
6.6 |
19 |
67 |
| 16(30/30) |
2x1.5 |
0.7 |
0.8 |
7.4 |
29 |
87 |
| 14(50/30) |
2x2.5 |
0.8 |
1.0 |
9.3 |
48 |
138 |
| 12(56/28) |
2x4 |
0.8 |
1.1 |
10.6 |
76.8 |
190 |
| 3183B |
| 18(24/32) |
3x0.75 |
0.6 |
0.8 |
6.6 |
21.6 |
68 |
| 17(32/32) |
3x1 |
0.6 |
0.8 |
6.9 |
29 |
81 |
| 16(30/30) |
3x1.5 |
0.7 |
0.9 |
8.1 |
43 |
109 |
| 14(50/30) |
3x2.5 |
0.8 |
1.1 |
10.1 |
72 |
172 |
| 12(56/28) |
3x4 |
0.8 |
1.2 |
11.5 |
115.2 |
242 |
| 3184B |
| 18(24/32) |
4x0.75 |
0.6 |
0.8 |
7.1 |
29 |
81 |
| 17(32/32) |
4x1 |
0.6 |
0.9 |
7.7 |
38 |
101 |
| 16(30/30) |
4x1.5 |
0.7 |
1.0 |
9 |
58 |
117 |
| 14(50/30) |
4x2.5 |
0.8 |
1.1 |
11 |
96 |
210 |
| 12(56/28) |
4x4 |
0.8 |
1.4 |
12.5 |
153.6 |
298 |
| 3185B |
| 18(24/32) |
5x0.75 |
0.6 |
0.9 |
8 |
36 |
102 |
| 17(32/32) |
5x1 |
0.6 |
0.9 |
8.4 |
48 |
107 |
| 16(30/30) |
5x1.5 |
0.7 |
1.1 |
10 |
72 |
169 |
| 14(50/30) |
5x2.5 |
0.8 |
1.2 |
12.3 |
120 |
260 |
| 12(56/28) |
5x4 |
0.8 |
1.4 |
14.1 |
192 |
371 |
