3192Y to BS 6500
Application and Description
These cables are suited for medium mechanical stress in damp and wet environments such as refrigerators, washing machines, spin dryers and other appliances, as long as it meets applicable equipment specifications. These cables are also suited for cooking and heating apparatus, provided that the cable does not come into direct contact with the hot parts of the apparatus or with any other heat source. Further applications of this cable include: Fixed installation in furniture, partition walls, decorative covering, and in the hollow spaces of prefabricated building parts. They are not suitable for outdoor use, industrial (except clothing manufacture) or farming applications. 3192Y is equivalent to harmonized code H05VVH2-F.

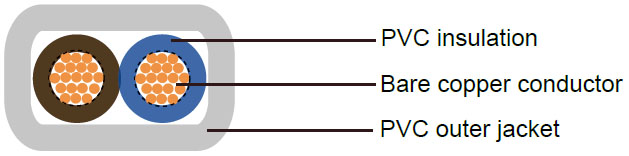

Cable Construction
| Bare copper fine wire conductor |
| Stranding to BS 6360 Class 5 or IEC 60228 Class 5 |
| PVC core insulation TI2 to BS 7655 |
| PVC outer jacket TM2 to BS 7655 |
Core Identification
| 2 Cores |
Blue, Brown |
| 3 cores |
Green/Yellow, Blue, Brown |
| 4 cores |
Green/Yellow, Brown, Black, Grey |
| 5 Cores |
Green/Yellow, Brown, Black, Grey, Blue |
Technical Characteristics
| Working voltage |
300/500 volts |
| Test voltage |
2000 volts |
| Flexing bending radius |
7.5xOverall diameter |
| Static bending radius |
4xOverall diameter |
| Flexing temperature |
-5 oC to +70 oC |
| Static temperature |
-40 oC to +70 oC |
| Short circuit temperature |
+160 oC |
| Flame retardant |
IEC 60332.1 |
| Insulation resistance |
20 MΩxkm |
Cable Parameter
| AWG (No of Strands/Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area |
Nominal thickness of insulation |
Nominal thickness of sheath |
Nominal overall Diameter |
Nominal
Copper
Weight |
Nominal Weight |
| #xmm^2 |
mm |
mm |
mm |
kg/km |
kg/km |
| 3192Y |
| 18(24/32) |
2x0.75 |
0.6 |
0.8 |
4.2x6.8 |
14.4 |
48 |
| 17(32/32) |
2x1.00 |
0.6 |
0.8 |
4.4x7.2 |
19.2 |
57 |
