6181B to BS 7889
Application and Description
These cables are designed for fixed wiring purposes in domestic and industrial power/lighting applications. They can be installed in trunking or conduit, or may be surface mounted when used for earthing. They are suitable for use in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. When mechanical protection is required, they can be embedded in concrete.

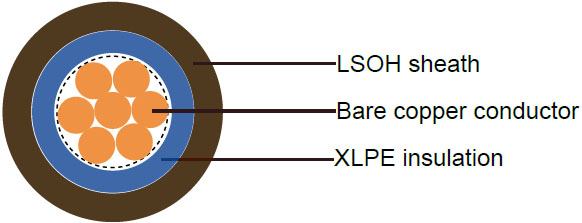

Cable Construction
| Bare copper made of strands conductor |
| Stranding to IEC 60228 Class 2 |
| XLPE insulation |
| LSOH sheath |
Core Identification
Black, Blue, Brown
Technical Characteristics
| Working voltage |
600/1000 volts |
| Minimum bending radius |
up to 25 mm^2 - 4xoverall diameter |
| |
above 25 mm^2 - 6xoverall diameter |
| Operating temperature |
-15 oC to +90 oC |
| Insulation resistance |
10 MΩxkm |
| |
Halogen free acc. to EN 50267-2-1 / IEC 60754-1 |
| |
Smoke density acc. to EN 50268-2 / IEC 61034-2 |
| |
Corrosivity of gases acc. to EN 50267-2-2, IEC 60754-2 |
| |
Flame retardancy acc. to EN 50265-2-1, IEC 60332-1 |
Cable Parameter
| AWG (No of Strands/Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Overall Diameter |
Nominal Copper Weight |
Nominal Weight |
| #xmm^2 |
mm |
mm |
kg/km |
kg/km |
| 16(1/16) |
1x1.5 |
0.7 |
1.4 |
6 |
50 |
| 14(1/14) |
1x2.5 |
0.7 |
1.4 |
6.5 |
70 |
| 12(7/20) |
1x4 |
0.7 |
1.4 |
7 |
80 |
| 10(7/18) |
1x6 |
0.7 |
1.4 |
7.5 |
110 |
| 8(7/16) |
1x10 |
0.7 |
1.4 |
8.5 |
150 |
| 6(7/14) |
1x16 |
0.7 |
1.4 |
9.5 |
215 |
| 4(7/12) |
1x25 |
0.9 |
1.4 |
11.5 |
315 |
| 2(7/10) |
1x35 |
0.9 |
1.4 |
12 |
415 |
| 1(19/13) |
1x50 |
1 |
1.4 |
13 |
555 |
| 2/0(19/11) |
1x70 |
1.1 |
1.4 |
15 |
760 |
| 3/0(19/10) |
1x95 |
1.1 |
1.5 |
17 |
1025 |
| 4/0(37/12) |
1x120 |
1.2 |
1.5 |
18.5 |
1270 |
| 300MCM(37/11) |
1x150 |
1.4 |
1.6 |
21.5 |
1575 |
| 350MCM(37/10) |
1x185 |
1.6 |
1.6 |
23 |
1955 |
| 500MCM(61/11) |
1x240 |
1.7 |
1.7 |
26 |
2470 |
| -(61/10) |
1x300 |
1.8 |
1.8 |
28 |
3155 |
| -(61/9) |
1x400 |
2 |
1.9 |
32 |
4049 |
| -(61/8) |
1x500 |
2.2 |
2 |
36 |
5100 |
| -(127/10) |
1x630 |
2.4 |
2.2 |
40 |
6410 |
