Coil End Lead Cable to BS 6195 type 4
Application and Description
These cables are designed as power leads for permanent connection to coil winding motors, panel wiring and electrical machinery. They are able to withstand high temperature and immersion in varnish. Other applications include vehicle wiring, The HOFR sheath resists oil and varnish and the stranding is designed as a compromise between flexibility and positional stability. Also they are suitable for use as an alternative to tri-rated and bi-rated cable in certain applications.

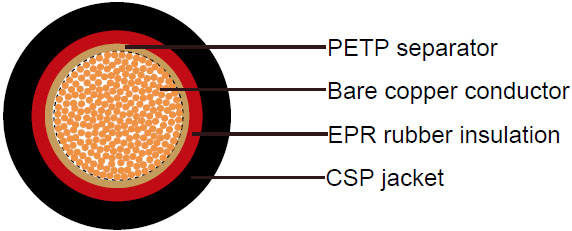

Cable Construction
| Fine bare copper strands |
| Stranding to BS 6360 Class 5 or IEC 60228 Class 5 |
| PETP(Polyethylene Terephthalate) tape separator |
| EPR-HOFR( Ethylene Propylene Rubber-Heat and Oil Resistant and Flame Retardant) insulation, type FR1 (for type 4A & 4C) & type FR2 (for type 4D & 4E&4F) to BS 7655 |
| CSP(Chlorosulphonated Polyethylene), HOFR (Heat and Oil Resistant and Flame Retardant) sheath to BS 6899, black |
Technical Characteristics
| Working voltage |
Type 4A: 300/500V |
| |
Type 4C: 600/1000V |
| |
Type 4D: 1900/3300V |
| |
Type 4E: 3800/6600V |
| |
Type 4F: 6350/11000V |
| Minimum bending radius |
4xOverall diameter |
| Operating temperature |
-20 oC to +90 oC |
Cable Parameter
| AWG (No of Strands/Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Overall Diameter |
Nominal Weight |
| #xmm^2 |
mm |
mm |
kg/km |
| TYPE 4A |
| 18(24/32) |
1x0.75 |
0.8 |
3.5 |
16 |
| 17(32/32) |
1x1 |
0.8 |
3.7 |
19 |
| 16(30/30) |
1x1.5 |
0.8 |
4 |
25 |
| 14(50/30) |
1x2.5 |
0.9 |
4.6 |
37 |
| 12(56/28) |
1x4 |
1 |
5.4 |
57 |
| 10(84/28) |
1x6 |
1 |
6.5 |
80 |
| 8(80/26) |
1x10 |
1.2 |
7.9 |
130 |
| TYPE 4C |
| 20(16/32) |
1x0.5 |
1.4 |
4.5 |
17 |
| 18(24/32) |
1x0.75 |
1.4 |
4.7 |
21 |
| 17(32/32) |
1x1 |
1.4 |
4.9 |
24 |
| 16(30/30) |
1x1.5 |
1.4 |
5.2 |
30 |
| 14(50/30) |
1x2.5 |
1.4 |
5.6 |
41 |
| 12(56/28) |
1x4 |
1.4 |
6.3 |
66 |
| 10(84/28) |
1x6 |
1.5 |
7.5 |
93 |
| 8(80/26) |
1x10 |
1.5 |
8.5 |
136 |
| 6(128/26) |
1x16 |
1.5 |
9.6 |
206 |
| 4(200/26) |
1x25 |
1.6 |
11.4 |
300 |
| 2(280/26) |
1x35 |
1.6 |
12.8 |
406 |
| 1(400/26) |
1x50 |
1.7 |
14.8 |
573 |
| 2/0(356/24) |
1x70 |
1.8 |
17.2 |
793 |
| 3/0(485/24) |
1x95 |
2 |
19.7 |
1028 |
| 4/0(614/24) |
1x120 |
2.2 |
21.9 |
1285 |
| 300 MCM (765/24) |
1x150 |
2.3 |
24.1 |
1562 |
| 350 MCM (944/24) |
1x185 |
2.4 |
26.3 |
1914 |
| 500MCM(1225/24) |
1x240 |
2.4 |
28.3 |
2431 |
| (1525/24) |
1x300 |
2.6 |
33 |
3024 |
| (2013/24) |
1x400 |
2.8 |
37.4 |
3948 |
| TYPE 4D |
| 6(128/26) |
1x16 |
2.8 |
12.4 |
255 |
| 4(200/26) |
1x25 |
2.8 |
13.8 |
351 |
| 2(280/26) |
1x35 |
2.8 |
15.2 |
458 |
| 1(400/26) |
1x50 |
2.8 |
17.1 |
616 |
| 2/0(356/24) |
1x70 |
2.8 |
19.2 |
820 |
| 3/0(485/24) |
1x95 |
3 |
22 |
1097 |
| 4/0(614/24) |
1x120 |
3 |
23.5 |
1340 |
| 300 MCM (765/24) |
1x150 |
3 |
25.5 |
1635 |
| 350 MCM (944/24) |
1x185 |
3 |
27.5 |
1973 |
| 500MCM(1225/24) |
1x240 |
3 |
30.6 |
2504 |
| (1525/24) |
1x300 |
3 |
33.8 |
3098 |
| (2013/24) |
1x400 |
3 |
37.8 |
4045 |
| TYPE 4E |
| 6(128/26) |
1x16 |
5 |
17.2 |
384 |
| 4(200/26) |
1x25 |
5 |
18.6 |
495 |
| 2(280/26) |
1x35 |
5 |
20 |
613 |
| 1(400/26) |
1x50 |
5 |
22.1 |
796 |
| 2/0(356/24) |
1x70 |
5 |
24.2 |
1020 |
| 3/0(485/24) |
1x95 |
5 |
26.3 |
1287 |
| 4/0(614/24) |
1x120 |
5 |
27.8 |
1542 |
| 300 MCM (765/24) |
1x150 |
5 |
29.8 |
1853 |
| 350 MCM (944/24) |
1x185 |
5 |
32.1 |
2225 |
| 500MCM(1225/24) |
1x240 |
5 |
35.1 |
2782 |
| TYPE 4F |
| 6(128/26) |
1x16 |
7.6 |
22.9 |
566 |
| 4(200/26) |
1x25 |
7.6 |
24.1 |
680 |
| 2(280/26) |
1x35 |
7.6 |
25.5 |
810 |
| 1(400/26) |
1x50 |
7.6 |
27.3 |
997 |
| 2/0(356/24) |
1x70 |
7.6 |
29.4 |
1237 |
| 3/0(485/24) |
1x95 |
7.6 |
31.5 |
1520 |
| 4/0(614/24) |
1x120 |
7.6 |
33.3 |
1804 |
| 300 MCM (765/24) |
1x150 |
7.6 |
35.3 |
2131 |
| 350 MCM (944/24) |
1x185 |
7.6 |
37.3 |
2503 |
| 500MCM(1225/24) |
1x240 |
7.6 |
40.3 |
3081 |
