H01N2-D/E to BS 638
Application and Description
These cables are used as a connection between the welding generator, the hand-electrode and the work piece, they are suitable for use in the automobile industry, ship building, transport and conveyor systems, tool making machinery, welding robots etc. These cables retain their high flexibility even under influence of ozone, light, oxygen, protective gases, oil and petrol. Robust design of these cables makes them resistant to low and high temperature, fire, ozone and radiation, oils, acids, fats and petrols. These cables are also ideal for outside installation in dry, moist and wet areas.

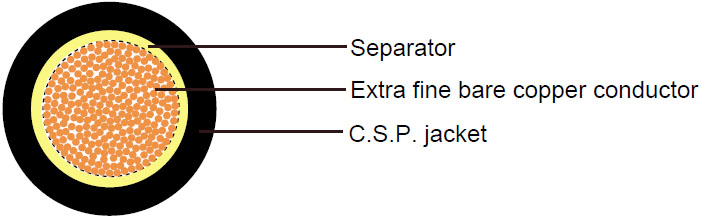

Cable Construction
| Extra fine bare copper strands |
| Stranding to BS 6360 Class 5/6, IEC 60228 Class 5/6 |
| Synthetic or paper separator over core |
| Chlorosulphonated Polyethylene (C.S.P.), HOFR (Heat and Oil Resistant and Flame Retardant) to BS7655 , black/ orange |
Core Identification
Blue (Blue), Grey (Grey), Green/Yellow (Green/Yellow), Brown (Brown), Special colours to order
Technical Characteristics
| Working voltage |
100/100 volts |
| Test voltage |
1000 volts |
| Minimum bending radius |
12.0xOverall diameter (H01N2-D) |
| |
10xOverall diameter (H01N2-E) |
| Flexing Temperature |
-25 oC to +80 oC |
| Fixed Temperature |
-40 oC to +80 oC |
| Flame retardant |
IEC 60332.1CS |
Cable Parameter
H01N2-D (standard flexibility)
| AWG (No of Strands/Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Overall Diameter |
Nominal Copper Weight |
Nominal Weight |
| #xmm^2 |
mm |
mm |
kg/km |
kg/km |
| 8(320/32) |
1x10 |
2.0 |
7.7-9.7 |
96 |
135 |
| 6(512/32) |
1x16 |
2.0 |
8.8-11.0 |
154 |
205 |
| 4(800/32) |
1x25 |
2.0 |
10.1-12.7 |
240 |
302 |
| 2(1120/32) |
1x35 |
2.0 |
11.4-14.2 |
336 |
420 |
| 1(1600/32) |
1x50 |
2.2 |
13.2-16.5 |
480 |
586 |
| 2/0(2240/32) |
1x70 |
2.4 |
15.3-19.2 |
672 |
798 |
| 3/0(3024/32) |
1x95 |
2.6 |
17.1-21.4 |
912 |
1015 |
| 4/0(614/24) |
1x120 |
2.8 |
19.2-24 |
1152 |
1310 |
| 300MCM(765/24) |
1x150 |
3.0 |
21.2-26.4 |
1440 |
1620 |
| 350MCM(944/24) |
1x185 |
3.2 |
23.1-28.9 |
1776 |
1916 |
| 500MCM(1225/24) |
1x240 |
3.4 |
25-29.5 |
2304 |
2540 |
H01N2-E(high flexibility)
| AWG (No of Strands/Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Overall Diameter |
Nominal Copper Weight |
Nominal Weight |
| #xmm^2 |
mm |
mm |
kg/km |
kg/km |
| 8(566/35) |
1x10 |
1.2 |
6.2-7.8 |
96 |
119 |
| 6(903/35) |
1x16 |
1.2 |
7.3-9.1 |
154 |
181 |
| 4(1407/35) |
1x25 |
1.2 |
8.6-10.8 |
240 |
270 |
| 2(1974/35) |
1x35 |
1.2 |
9.8-12.3 |
336 |
363 |
| 1(2830/35) |
1x50 |
1.5 |
11.9-14.8 |
480 |
528 |
| 2/0(3952/35) |
1x70 |
1.8 |
13.6-17.0 |
672 |
716 |
| 3/0(5370/35) |
1x95 |
1.8 |
15.6-19.5 |
912 |
1012 |
| 4/0(3819/32) |
1x120 |
1.8 |
17.2-21.6 |
1152 |
1190 |
| 300MCM(4788/32) |
1x150 |
1.8 |
18.8-23.5 |
1440 |
1305 |
| 500MCM(5852/32) |
1x185 |
1.8 |
20.4-25.5 |
1776 |
1511 |
