H05V3V3H6-F/ H05V3V3D3H6-F

Application and Description

This kind of flat cables are used in crews of elevators for people and have burdens, and conducting very swift and hard parts of machines.

H05V3V3H6-F type cables having no strechter carrier elements are adviced to use in elevator instalations max. swift not pass 4.0 m/s.These cables freely hanging height is max. 45m and movement limit is max 80m.

For the H05V3V3D3H6-F, at the swifts between 4.0/s to 6.3m/s, it’s adviced to use the cables having strechter carrier elements. H05V3V3D3H6-F type cables freely hanging height is max. 80m movement limit is max. 150m.

Standard and Approval

  • NF C 32-070
  • CSA C22.2 N° 49

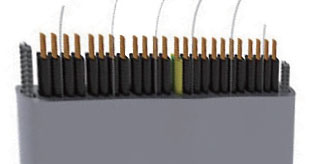

Cable Construction

H05V3V3H6-F H05V3V3D3H6-F
Bare copper strand conductor
acc. to DIN VDE 0295 class 5/6 resp. IEC 60228 class 5/6
PVC T15 core insulation
Color coded to VDE 0293-308, >6 wires black with white numerals with green/yellow wire
Black PVC TM 4 sheath

Technical Characteristics

Working voltage 300/500V
Test voltage 2000V
Flexing temperature - 35°C - +70°C
Flame retardant NF C 32-070
Insulation resistance 350 MΩ x km

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area Nominal Overall Dimension Nominal Copper Weight Nominal Weight
  # x mm^2 mm kg/km kg/km
H05V3V3H6-F
18(24/32) 12 x 0.75 33.7 x 4.3 79 251
18(24/32) 16 x 0.75 44.5 x 4.3 105 333
18(24/32) 18 x 0.75 49.2 x 4.3 118 371
18(24/32) 20 x 0.75 55.0 x 4.3 131 415
18(24/32) 24 x 0.75 65.7 x 4.3 157 496
17(32/32) 12 x 1 35.0 x 4.4 105 285
17(32/32) 16 x 1 51.0 x 4.4 157 422
17(32/32) 20 x 1 57.0 x 4.4 175 472
17(32/32) 24 x 1 68.0 x 4.4 210 565
H05V3V3D3H6-F
18(24/32) 20 x 0.75 61.8 x 4.2 131 462
18(24/32) 24 x 0.75 72.4 x 4.2 157 546
17(32/32) 12 x 1 41.8 x 4.3 105 330
17(32/32) 14 x 1 47.8 x 4.3 122 382
17(32/32) 18 x 1 57.8 x 4.3 157 470
17(32/32) 22 x 1 69.8 x 4.3 192 572
17(32/32) 24 x 1 74.8 x 4.3 210 617
