H07RN-F
Application and Description
These cables are designed to provide high flexibility and have the capacity to withstand weather, oils/greases, mechanical and thermal stresses.
Applications include handling quipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also suitable for fixed installations on plaster, temporary buildings and residential barracks and for use in drainage and water treatment, cold environments and severe industrial environments.
Max operating voltage in single or three phase system is Uo/U 476/825 volts. In a direct current system max operating voltage is Uo/U 619/1238 volts. If in a fixed or protected installation Uo/U is 600/1000 volts. These cables are resistant to flame, acids, and oil penetration.
Standard and Approval

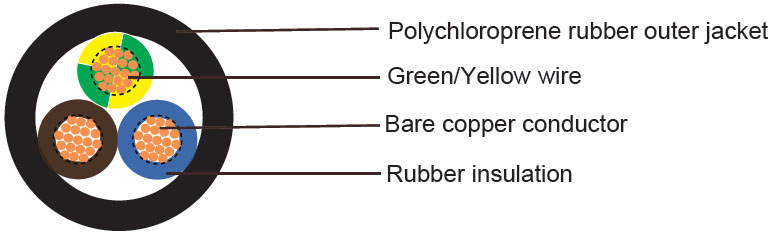

Cable Construction
| Fine bare copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
| Rubber core insulation EI4 to VDE-0282 Part-1 |
| Color code VDE-0293-308 and HD 186 |
| Green-yellow grounding, 3 conductors and above |
| Polychloroprene rubber (neoprene) jacket EM2 |
Technical Characteristics
| Working voltage |
450/750 volts |
| Test voltage |
2500 volts |
| Flexing bending radius |
6 x O |
| Fixed bending radius |
4.0 x O |
| Flexing Temperature |
-25o C to +60oC |
| Fixed Temperature |
-40o C to +60oC |
| Short circuit temperature |
+200 oC |
| Flame retardant |
NF C 32-070 |
| Insulation resistance |
20 MΩ x km |
Cable Parameter
| AWG |
No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Thickness of Sheath |
Nominal Overall Diameter |
Nominal Copper Weight |
Nominal Weight |
| |
# x mm^2 |
mm |
mm |
mm(min-max) |
kg/km |
kg/km |
| 17(32/32) |
2 x 1 |
0.8 |
1.3 |
7.7-10 |
19 |
89 |
| 17(32/32) |
3 x 1 |
0.8 |
1.4 |
8.3-10.7 |
29 |
111 |
| 17(32/32) |
4 x 1 |
0.8 |
1.5 |
9.2-11.9 |
38 |
146 |
| 16(30/30) |
1 x 1.5 |
0.8 |
1.4 |
5.7-7.1 |
14.4 |
59 |
| 16(30/30) |
2 x 1.5 |
0.8 |
1.5 |
8.5-11.0 |
29 |
135 |
| 16(30/30) |
3 x 1.5 |
0.8 |
1.6 |
9.2-11.9 |
43 |
165 |
| 16(30/30) |
4 x 1.5 |
0.8 |
1.7 |
10.2-13.1 |
58 |
200 |
| 16(30/30) |
5 x 1.5 |
0.8 |
1.8 |
11.2-14.4 |
72 |
240 |
| 16(30/30) |
7 x 1.5 |
0.8 |
2.6 |
14.5-17.5 |
101 |
385 |
| 16(30/30) |
12 x 1.5 |
0.8 |
2.9 |
17.6-22.4 |
173 |
516 |
| 16(30/30) |
19 x 1.5 |
0.8 |
3.2 |
20.7-26.3 |
274 |
800 |
| 16(30/30) |
24 x 1.5 |
0.8 |
3.5 |
24.3-30.7 |
346 |
882 |
| 14(50/30) |
1 x 2.5 |
0.9 |
1.4 |
6.3-7.9 |
24 |
72 |
| 14(50/30) |
2 x 2.5 |
0.9 |
1.7 |
10.2-13.1 |
48 |
195 |
| 14(50/30) |
3 x 2.5 |
0.9 |
1.8 |
10.9-14.0 |
72 |
235 |
| 14(50/30) |
4 x 2.5 |
0.9 |
1.9 |
12.1-15.5 |
96 |
290 |
| 14(50/30) |
5 x 2.5 |
0.9 |
2 |
13.3-17.0 |
120 |
345 |
| 14(50/30) |
7 x 2.5 |
0.9 |
2.8 |
16.5-20.0 |
168 |
520 |
| 14(50/30) |
12 x 2.5 |
0.9 |
3.1 |
20.6-26.2 |
288 |
810 |
| 14(50/30) |
19 x 2.5 |
0.9 |
3.5 |
25.5-31.0 |
456 |
1200 |
| 14(50/30) |
24 x 2.5 |
0.9 |
3.9 |
28.8-36.4 |
576 |
1650 |
| 12(56/28) |
1 x 4 |
1 |
1.5 |
7.2-9.0 |
38 |
99 |
| 12(56/28) |
2 x 4 |
1 |
1.8 |
11.8-15.1 |
77 |
270 |
| 12(56/28) |
3 x 4 |
1 |
1.9 |
12.7-16.2 |
115 |
320 |
| 12(56/28) |
4 x 4 |
1 |
2 |
14.0-17.9 |
154 |
395 |
| 12(56/28) |
5 x 4 |
1 |
2.2 |
15.6-19.9 |
192 |
485 |
| 12(56/28) |
7 x 4 |
1 |
3.1 |
18.2-21.8 |
269 |
681 |
| 10(84/28) |
1 x 6 |
1 |
1.6 |
7.9-9.8 |
58 |
130 |
| 10(84/28) |
3 x 6 |
1 |
2.1 |
14.1-18.0 |
173 |
495 |
| 10(84/28) |
4 x 6 |
1 |
2.3 |
15.7-20.0 |
230 |
610 |
| 10(84/28) |
5 x 6 |
1.2 |
2.5 |
17.5-22.2 |
288 |
760 |
| 8(80/26) |
1 x 10 |
1.2 |
1.8 |
9.5-11.9 |
96 |
230 |
| 8(80/26) |
3 x 10 |
1.2 |
3.3 |
19.1-24.2 |
288 |
880 |
| 8(80/26) |
4 x 10 |
1.2 |
3.4 |
20.9-26.5 |
384 |
1060 |
| 8(80/26) |
5 x 10 |
1.2 |
3.6 |
22.9-29.1 |
480 |
1300 |
| 6(128/26) |
1 x 16 |
1.2 |
1.9 |
10.8-13.4 |
154 |
320 |
| 6(128/26) |
3 x 16 |
1.2 |
3.5 |
21.8-27.6 |
461 |
1090 |
| 6(128/26) |
4 x 16 |
1.2 |
3.6 |
23.8-30.1 |
614 |
1345 |
| 6(128/26) |
5 x 16 |
1.2 |
3.9 |
26.4-33.3 |
768 |
1680 |
| 4(200/26) |
1 x25 |
1.4 |
2 |
12.7-15.8 |
240 |
450 |
| 4(200/26) |
4 x 25 |
1.4 |
4.1 |
28.9-36.6 |
960 |
1995 |
| 4(200/26) |
5 x 25 |
1.4 |
4.4 |
32.0-40.4 |
1200 |
2470 |
| 2(280/26) |
1 x 35 |
1.4 |
2.2 |
14.3-17.9 |
336 |
605 |
| 2(280/26) |
3 x 35 |
1.4 |
4.1 |
29.3-37.1 |
1008 |
1900 |
| 2(280/26) |
4 x 35 |
1.4 |
4.4 |
32.5-41.1 |
1344 |
2645 |
| 2(280/26) |
5 x 35 |
1.4 |
4.7 |
37.0-45.0 |
1680 |
2810 |
| 1(400/26) |
1 x 50 |
1.6 |
2.4 |
16.5-20.6 |
480 |
825 |
| 1(400/26) |
4 x 50 |
1.6 |
4.8 |
37.7-47.5 |
1920 |
3635 |
| 1(400/26) |
5 x 50 |
1.6 |
5.1 |
40.0-50.8 |
2400 |
4050 |
| 2/0(356/24) |
1 x 70 |
1.6 |
2.6 |
18.6-23.3 |
672 |
1090 |
| 2/0(356/24) |
4 x 70 |
1.6 |
5.2 |
42.7-54.0 |
2688 |
4830 |
| 3/0(485/24) |
1 x 95 |
1.8 |
2.8 |
20.8-26.0 |
912 |
1405 |
| 3/0(485/24) |
4 x 95 |
1.8 |
5.9 |
48.4-61.0 |
3648 |
6320 |
| 4/0(614/24) |
1x 120 |
1.8 |
3 |
22.8-28.6 |
1152 |
1746 |
| 4/0(614/24) |
4 x 120 |
1.8 |
6 |
53.0-66.0 |
4608 |
6830 |
| 300MCM (765/24) |
1 x 150 |
2 |
3.2 |
25.2-31.4 |
1440 |
1887 |
| 300MCM (765/24) |
4 x 150 |
2 |
6.4 |
58.0-73.0 |
5760 |
8320 |
| 350MCM (944/24) |
1 x 185 |
2.2 |
3.4 |
27.6-34.4 |
1776 |
2274 |
| 350MCM (944/24) |
4 x 185 |
2.2 |
6.8 |
64.0-80.0 |
7104 |
9800 |
| 500MCM (1221/24) |
1x 240 |
2.4 |
3.5 |
30.6-38.3 |
23.4 |
2956 |
| 500MCM (1221/24) |
4x 240 |
2.4 |
7.0 |
72.0-90.0 |
9216 |
12100 |
| - |
1 x 300 |
2.6 |
3.6 |
33.5-41.9 |
2880 |
3479 |
