H05BN4-F

Application and Description

These EPR (ethylen-propylen rubber) insulated and CSP (chlorosulphonated polyethylene rubber or similar) sheathed electric cables can be used either in dry, humid or wet places or in contact with oil or grease, in weather conditions and under weak mechanical stress, for example for power supply to small appliances in industrial plants, machine shops, heating plates, portable lamps, farming equipment etc. They are also suitable for caravans and camping equipment... The maximum conductor temperature in normal use: 90°C. While high temperature use, skin contact must be avoided.

Standard and Approval

  • <HAR> CENELEC HD 22.12 S1
  • CEI 20-19/12
  • CEI 20-35 (EN 60332-1)
  • BS6500
  • BS7919
  • ROHS compliant
  • VDE 0282 Part-12
  • IEC 60245-4
  • CE Low-Voltage

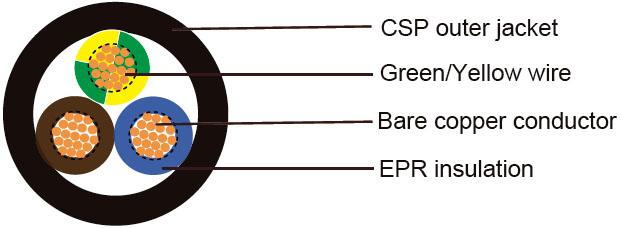

Cable Construction

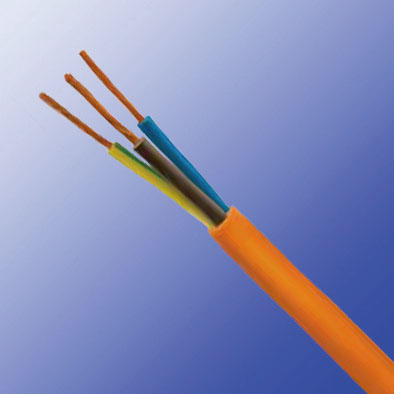

H05BN4-F H05BN4-F - Harmonized Code Industrial Cables
Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
EPR(Ethylene Propylene Rubber) rubber EI7 insulation
Color code VDE-0293-308
CSP(Chlorosulphonated Polyethylene) outer jacket EM7

Technical Characteristics

Working voltage 300/500 volts
Test voltage 2000 volts
Flexing bending radius 6.0 x O
Fixed bending radius 4.0 x O
Temperature Range -20 oC to +90 oC
Maximum Short Circuit Temperature +250 oC
Flame retardant IEC 60332.1
Insulation resistance 20 MΩ x km

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
# x mm^2 mm mm mm kg/km kg/km
18(24/32) 2 x 0.75 0.6 0.8 6.1 29 54
18(24/32) 3 x 0.75 0.6 0.9 6.7 43 68
18(24/32) 4 x 0.75 0.6 0.9 7.3 58 82
18(24/32) 5 x 0.75 0.6 1.0 8.1 72 108
17(32/32) 2 x 1 0.6 0.9 6.6 19 65
17(32/32) 3 x 1 0.6 0.9 7.0 29 78
17(32/32) 4 x 1 0.6 0.9 7.6 38 95
17(32/32) 5 x 1 0.6 1.0 8.5 51 125
