H05G-U / H07G-U/R

Application and Description

These cables are recommended for the internal wiring of switchboards and distributor boards as well as in operating parts in or on lights. The higher temperature range allows for connections to heaters with an alternating nominal voltage of 1000V. or direct nominal voltage of 750V. These cables are all allowed for laying in tubes in and under plaster.

Standard and Approval

  • <HAR> HD 22.7 S2
  • VDE-0282 Part-7
  • CEI 20-19/7
  • CEI 20-35(EN60332-1)
  • CE Low Voltage Directive 73/23/EEC and 93/68/EEC
  • ROHS compliant

Cable Construction

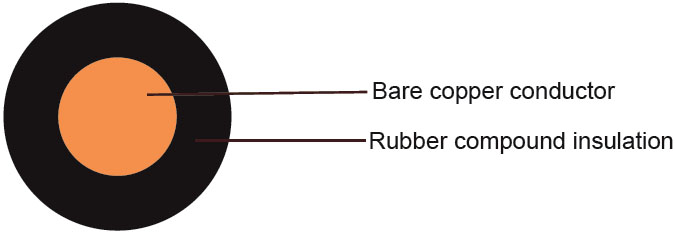

H05G-U H05G-U - Harmonized Code Industrial Cables
Solid bare copper / strands
Strands to VDE-0295 Class-1/2, IEC 60228 Class-1/2
Rubber compound type EI3 (EVA) to DIN VDE 0282 part 7 insulation
Cores to VDE-0293 colors

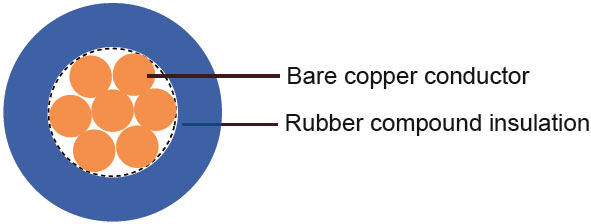

H07G-R H07G-R - Harmonized Code Industrial Cables

Technical Characteristics

Working voltage 300/500v (H05G-U) ; 450/750v (H07G-U/R)
Test voltage 2000volts (H05G-U) ; 2500 volts (H07G-U/R)
Flexing bending radius 7 x O
Static bending radius 7 x O
Flexing temperature -25 oC to +110 oC
Static temperature -40 oC to +110 oC
Short circuit Temperature +160 oC
Flame retardant IEC 60332.1
Insulation resistance 10 MΩ x km

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
# x mm^2 mm mm kg/km kg/km
H05G-U
20 1 x 0.5 0.6 2.1 4.8 9
18 1 x 0.75 0.6 2.3 7.2 12
17 1 x 1 0.6 2.5 9.6 15
H07G-U
16 1 x 1.5 0.8 3.1 14.4 21
14 1 x 2.5 0.9 3.6 24 32
12 1 x 4 1.0 4.3 38 49
H07G-R
10(7/18) 1 x 6 1.0 5.2 58 70
8(7/16) 1 x 10 1.2 6.5 96 116
6(7/14) 1 x 16 1.2 7.5 154 173
4(7/12) 1 x 25 1.4 9.2 240 268
2(7/10) 1 x 35 1.4 10.3 336 360
1(19/13) 1 x 50 1.6 12.0 480 487
