H05V-K UL / H07V-K UL

UL/CSA/HAR/MTW & UL1015 PVC

Application and Description

H05VK UL / H07V-K UL are internationally approved harmonized, UL/CSA and AWM/MTW approved PVC European flexible single-conductor wires. Can be found in appliance wiring and machine tool wiring as well as in control systems. They may also be used in pipes and flexible conduits. Recommended for the internal wiring of apparatus, switchboards and distributor boards in electronic and electrical equipment designed for international use in North American & European countries and for MRO replacement of international made equipment wire.

Standard and Approval

  • <HAR> HD 21.7 S2
  • VDE-0281 Part-3
  • UL-Standard and Approval 1063 MTW
  • UL-AWM Style 1015
  • CSA TEW
  • CSA-AWM I A/B
  • FT-1
  • CE Low Voltage Directive 73/23/EEC and 93/68/EEC
  • ROHS compliant

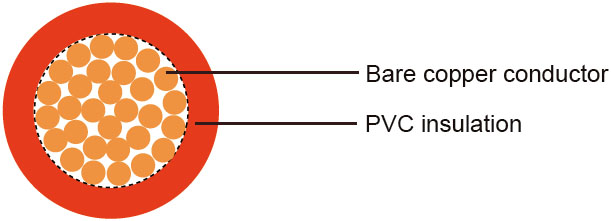

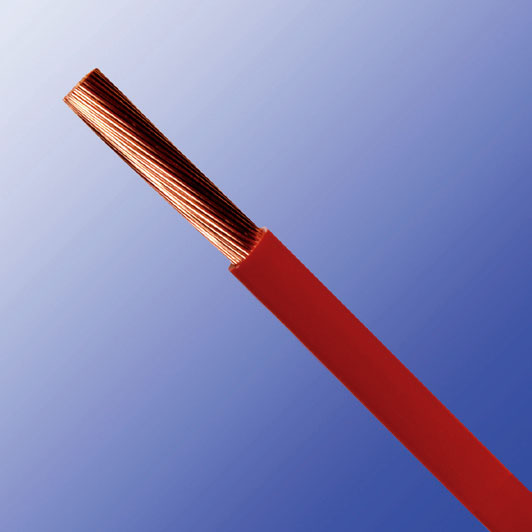

Cable Construction

H07V-K H07V-K - Harmonized Code Industrial Cables
Fine tinned copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5, HD383 Class-5
Special PVC TI3 core insulation
Cores to VDE-0293 colors
H05V-K UL (22, 20 & 18 AWG)
H07V-K UL (16 AWG and Larger)
X05V-K UL & X07V-K UL for non-HAR colors

Technical Characteristics

Working voltage 300/500v (H05V-K UL) ; 450/750v (H07V-K UL)
Working voltage UL/CSA 600v AC, 750v DC
Test voltage 2500 volts
Flexing/Static bending radius 10-15 x O
Temperature HAR/IEC -40 oC to +70 oC
Temperature UL-AWM -40 oC to +105 oC
Temperature UL-MTW -40 oC to +90 oC
Temperature CSA-TEW -40 oC to +105 oC
Flame retardant IEC 60332.1, FT-1
Insulation resistance 20 MΩ x km

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
# x mm^2 mm mm kg/km kg/km
H05V-K
20(16/32) 1 x 0.5 0.6 2.5 4.9 11
18(24/32) 1 x 0.75 0.6 2.7 7.2 14
17(32/32) 1 x 1 0.6 2.9 9.6 17
H07V-K
16(30/30) 1 x 1.5 0,7 3.1 14.4 20
14(50/30) 1 x 2.5 0,8 3.7 24.0 32
12(56/28) 1 x 4 0,8 4.4 38.0 45
10(84/28) 1 x 6 0,8 4.9 58.0 63
8(80/26) 1 x 10 1,0 6.8 96.0 120
6(128/26) 1 x 16 1,0 8.9 154.0 186
4 (200/26) 1 x 25 1,2 10.1 240 261
2 (280/26) 1 x 35 1,2 11.4 336 362
1 (400/26) 1 x 50 1,4 14.1 480 539
2/0 (356/24) 1 x 70 1,4 15.8 672 740
3/0 (485/24) 1 x 95 1,6 18.1 912 936
4/0 (614/24) 1 x 120 1,6 19.5 1152 1184
