FROH2R
Application and Description
These cables are suitable for connections and movable equipments where performances and entertainments take place. Can be laid inside, even in dry or wet environments or outside but only for a temperatureorary use. The main feature of these cables is its protection against electromagnetic interference thanks to the copper braid. Can be lay under plaster or directly buried, even if protected, is not allowed.
Standard and Approval
- CEI 20-11
- CEI 20-22/2
- CEI 20-29
- CEI 20-34
- CEI 20-35 (EN60332-1)
- CEI 20-37 pt.2 (EN50267)
- CEI20-52

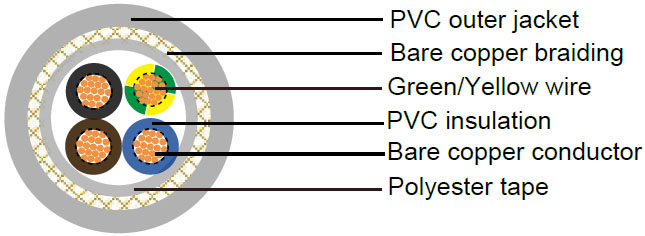

Cable Construction
| Flexible bare copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5, CEI 20-29 Class-5 |
| PVC Insulation compound type TI2 according to CEI 20-11 |
| Color code according to Unel 0722 |
| Polyester Tape |
| Bare copper wires braiding with coverage 75%±5% |
| PVC outer sheath compound type TM2 / Rz according to CEI 20-11 |
Technical Characteristics
| Working voltage |
300/500V |
| |
450/750V |
| Test voltage |
2000V (300/500V) |
| |
2500V (450/750V) |
| Flexing bending radius |
10 x O |
| Static bending radius |
6 x O |
| Flexible temperature |
0o C to + 70o C |
| Static temperature |
-15o C to +70o C |
| Flame retardant |
VDE 0472 part 804, test method B, and IEC 60332.1 |
| Insulation resistance |
10 MΩ x km |
Cable Parameter
| AWG |
No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
| |
# x mm^2 |
mm |
mm |
mm |
kg/km |
| FROH2R 300/500V |
| Seven cores(including ground core ) |
| 17(32/32) |
7 x 1 |
0.6 |
1.0 |
10.5 |
147.1 |
| 16(30/30) |
7 x 1.5 |
0.7 |
1.2 |
12.1 |
186.9 |
| 14(50/30) |
7 x 2.5 |
0.8 |
1.4 |
14.0 |
242.4 |
| 10 cores(including ground core ) |
| 17(32/32) |
10 x 1 |
0.6 |
1.2 |
12.8 |
215.9 |
| 16(30/30) |
10 x 1.5 |
0.7 |
1.3 |
14.5 |
263.9 |
| 14(50/30) |
10 x 2.5 |
0.8 |
1.5 |
16.7 |
345.5 |
| 12 cores(including ground core ) |
| 17(32/32) |
12 x 1 |
0.6 |
1.2 |
14.0 |
252.0 |
| 16(30/30) |
12 x 1.5 |
0.7 |
1.4 |
16.1 |
315.1 |
| 14(50/30) |
12 x 2.5 |
0.8 |
1.6 |
18.7 |
412.7 |
| 14 cores(including ground core ) |
| 17(32/32) |
14 x 1 |
0.6 |
1.3 |
14.9 |
287.9 |
| 16(30/30) |
14 x 1.5 |
0.7 |
1.4 |
16.9 |
350.9 |
| 14(50/30) |
14 x 2.5 |
0.8 |
1.6 |
19.6 |
460.5 |
| 16 cores(including ground core ) |
| 17(32/32) |
16 x 1 |
0.6 |
1.3 |
15.6 |
317.3 |
| 16(30/30) |
16 x 1.5 |
0.7 |
1.5 |
17.9 |
397.5 |
| 14(50/30) |
16x 2.5 |
0.8 |
1.7 |
20.9 |
520.9 |
| 19 cores(including ground core ) |
| 17(32/32) |
19 x 1 |
0.6 |
1.4 |
16.6 |
368.3 |
| 16(30/30) |
19 x 1.5 |
0.7 |
1.5 |
18.8 |
449.2 |
| 14(50/30) |
19 x 2.5 |
0.8 |
1.7 |
22.0 |
593.7 |
| 24 cores(including ground core ) |
| 17(32/32) |
24 x 1 |
0.6 |
1.5 |
19.4 |
459.8 |
| 16(30/30) |
24 x 1.5 |
0.7 |
1.7 |
22.2 |
573.0 |
| 14(50/30) |
24 x 2.5 |
0.8 |
1.9 |
26.4 |
793.9 |
| FROH2R 450/750V |
| Two cores |
| 17(32/32) |
2 x 1 |
0.7 |
1.0 |
8.6 |
106.7 |
| 16(30/30) |
2 x 1.5 |
0.7 |
1.0 |
9.0 |
118.4 |
| 14(50/30) |
2 x 2.5 |
0.8 |
1.2 |
10.7 |
169.6 |
| 12(56/28) |
2 x 4.0 |
0.8 |
1.2 |
12.1 |
218.9 |
| 10(84/28) |
2 x 6.0 |
0.9 |
1.3 |
13.5 |
287.1 |
| Three cores(including ground core ) |
| 17(32/32) |
3x 1 |
0.7 |
1.0 |
9.1 |
123.5 |
| 16(30/30) |
3 x 1.5 |
0.7 |
1.0 |
9.5 |
142.2 |
| 14(50/30) |
3 x 2.5 |
0.8 |
1.2 |
11.3 |
203.8 |
| 12(56/28) |
3 x 4.0 |
0.8 |
1.3 |
13.0 |
277.0 |
| 10(84/28) |
3 x 6.0 |
0.9 |
1.4 |
14.4 |
364.8 |
| Four cores(including ground core ) |
| 17(32/32) |
4 x 1 |
0.7 |
1.0 |
9.8 |
144.8 |
| 16(30/30) |
4 x 1.5 |
0.7 |
1.1 |
10.5 |
173.5 |
| 14(50/30) |
4 x 2.5 |
0.8 |
1.2 |
12.2 |
242.5 |
| 12(56/28) |
4 x 4.0 |
0.8 |
1.3 |
14.4 |
345.6 |
| 10(84/28) |
4 x 6.0 |
0.9 |
1.4 |
15.6 |
441.3 |
| Five cores(including ground core ) |
| 17 |
5 x 1 |
0.7 |
1.1 |
10.7 |
175.4 |
| 16(30/30) |
5 x 1.5 |
0.7 |
1.2 |
11.5 |
209.0 |
| 14(50/30) |
5 x 2.5 |
0.8 |
1.3 |
13.6 |
308.4 |
| 12(56/28) |
5 x 4.0 |
0.8 |
1.5 |
15.9 |
430.7 |
| 10(84/28) |
5 x 6.0 |
0.9 |
1.5 |
17.1 |
536.7 |
