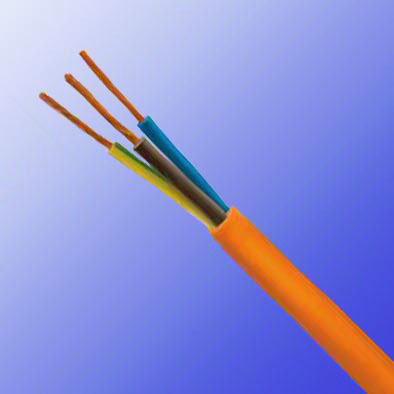

(H)03 Z1Z1-F/(H)05 Z1Z1-F
Application and Description
These cables may be used when halogen-free, low smoke and corrosive gas properties are required in case of fire. For moderate demands in the house, kitchen and office, for house equipment in damp rooms (for example: washing machines, dryers and refrigerators). Suitable for cooking and heating equipment, providing that the cable is not in contact with hot components or heat radiation. Not suitable for use in high temperature areas (like in lighting equipment), outside buildings, in industrial or agricultural buildings, connection of electrical power tools.
Standard and Approval
- CEI 20-20/14
- CEI 20-35 (EN60332-1)
- CEI 20-37 (EN50267)
- EN50363
- CE Low Voltage Directive 73/23/EEC and 93/68/EEC
- ROHS compliant

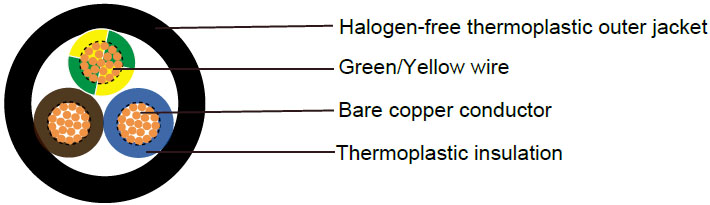

Cable Construction
| Fine bare copper strands |
| Strands to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5, HD 383 |
| Thermoplastic TI6 core insulation |
| Color code VDE-0293-308 |
| Green-yellow grounding (3 conductors and above) |
| Halogen-fee thermoplastic TM7 outer jacket |
| Black (RAL 9005) or White (RAL 9003) |
Technical Characteristics
| Flexing voltage |
300/300 volts(H03Z1Z1-F) |
| |
300/500 volts(H05Z1Z1-F) |
| Test voltage |
2000 volts(H03Z1Z1-F) |
| |
2500 volts(H05Z1Z1-F) |
| Flexing bending radius |
7.5 x O |
| Fixed bending radius |
4.0 x O |
| Flexing temperature |
-5o C to +70o C
|
| Fixed temperature |
-40o C to +70o C |
| Short circuit temperature |
+160o C |
| Insulation resistance |
20 MΩ x km |
| Flame test |
Smoke density acc. to EN 50268 / IEC 61034 |
| |
Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2 |
| |
flame-retardant acc. to EN 50265-2-1, IEC 60332.1 |
Cable Parameter
| AWG |
No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Thickness of Sheath |
Nominal Overall Diameter |
Nominal Copper Weight |
Nominal Weight |
| |
# x mm^2 |
mm |
mm |
mm |
kg/km |
kg/km |
| (H)03 Z1Z1-F |
| 20(16/32) |
2 x 0. 5 |
0.5 |
0.6 |
5.0 |
9.6 |
39 |
| 20(16/32) |
3 x 0. 5 |
0.5 |
0.6 |
5.3 |
14.4 |
46 |
| 20(16/32) |
4 x 0. 5 |
0.5 |
0.6 |
5.8 |
19.2 |
56 |
| 18(24/32) |
2 x 0.75 |
0.5 |
0.6 |
5.4 |
14.4 |
47 |
| 18(24/32) |
3 x 0.75 |
0.5 |
0.6 |
5.7 |
21.6 |
55 |
| 18(24/32) |
4 x 0.75 |
0.5 |
0.6 |
6.3 |
29.0 |
69 |
| (H)05 Z1Z1-F |
| 18(24/32) |
2 x 0.75 |
0.6 |
0.8 |
6.2 |
14.4 |
58 |
| 18(24/32) |
3 x 0.75 |
0..7 |
0.8 |
6.6 |
21.6 |
68 |
| 18(24/32) |
4 x 0.75 |
0.8 |
0.8 |
7.1 |
29 |
81 |
| 18(24/32) |
5 x 0.75 |
0.8 |
0.9 |
8 |
36 |
102 |
| 17(32/32) |
2 x 1 |
0.6 |
0.8 |
6.6 |
19 |
67 |
| 17(32/32) |
3 x 1 |
0.8 |
0.8 |
6.9 |
29 |
81 |
| 17(32/32) |
4 x 1 |
0.8 |
0.9 |
7.7 |
38 |
101 |
| 17(32/32) |
5 x 1 |
0.8 |
0.9 |
8.4 |
48 |
107 |
| 16(30/30) |
2 x 1.5 |
0.7 |
0.8 |
7.4 |
29 |
87 |
| 16(30/30) |
3 x 1.5 |
0.8 |
0.9 |
8.1 |
43 |
109 |
| 16(30/30) |
4 x 1.5 |
0.8 |
1.0 |
9 |
58 |
117 |
| 16(30/30) |
5 x 1.5 |
0.8 |
1.1 |
10 |
72 |
169 |
| 14(50/30) |
2 x 2.5 |
0.8 |
1.0 |
9.3 |
48 |
138 |
| 14(50/30) |
3 x 2.5 |
1.0 |
1.1 |
10.1 |
72 |
172 |
| 14(50/30) |
4 x 2.5 |
1.0 |
1.1 |
11 |
96 |
210 |
| 14(50/30) |
5 x 2.5 |
1.0 |
1.2 |
12.3 |
120 |
260 |
| 12(56/28) |
2 x 4 |
0.8 |
1.1 |
10.6 |
76.8 |
190 |
| 12(56/28) |
3 x 4 |
1.0 |
1.2 |
11.5 |
115.2 |
242 |
| 12(56/28) |
4 x 4 |
1.0 |
1.4 |
12.5 |
153.6 |
298 |
| 12(56/28) |
5 x 4 |
1.0 |
1.4 |
14.1 |
192 |
371 |
