H05VVC4V5-K
Application and Description
These cables are suitable for dry, damp and wet locations but not in the open-air. They are used as screened termination and connection cable in the control, measuring and signal technology. The copper braiding optimises protection against external interferences, like electromagnetic fields and stray frequencies. Suitable as a signal and impulse cable for control and inspection of industrial plants, machinery and working processes.
Standard and Approval
- CEI 20-20/13
- CEI 20-35 (EN60332-1)
- CEI 20-52
- HD 21.13 S1

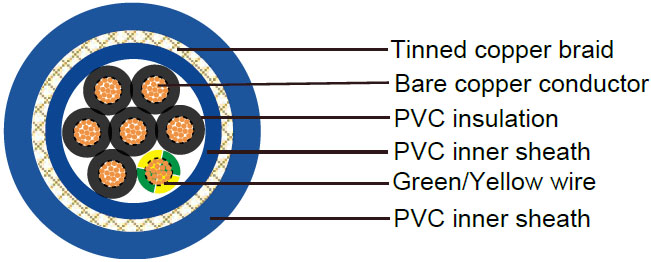

Cable Construction
| Fine bare copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
| PVC insulation T12 to DIN VDE 0281 part 1 |
| Green-yellow grounding (3 conductors and above) |
| Cores to VDE-0293 colors |
| PVC inner sheath TM2 to DIN VDE 0281 part 1 |
| Tinned copper braided shielding, covering approx. 85% |
| PVC outer jacket TM5 to DIN VDE 0281 part 1 |
Technical Characteristics
| Working voltage |
300/500v |
| Test voltage |
2000 volts |
| Flexing bending radius |
10 x O |
| Static bending radius |
5 x O |
| Flexing temperature |
-5o C to +70o C |
| Static Temperature |
-40o C to +70o C |
| Flame retardant |
IEC 60332.1 |
| Insulation resistance |
20 MΩ x km |
Cable Parameter
| AWG |
No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Thickness of Inner Sheath |
Nominal Thickness of outer Sheath |
Nominal Overall Diameter |
Nominal Copper Weight |
Nominal Weight |
| |
# x mm^2 |
mm |
mm |
mm |
mm |
kg/Km |
kg/Km |
| 20(16/32) |
2 x 0,50 |
0.6 |
0.7 |
0.9 |
7,7 |
35 |
105 |
| 18(24/32) |
2 x 0,75 |
0.6 |
0.7 |
0.9 |
8 |
39 |
115 |
| 17(32/32) |
2 x 1,0 |
0.6 |
0.7 |
0.9 |
8,2 |
44 |
125 |
| 16(30/30) |
2 x 1,50 |
0.7 |
0.7 |
1.0 |
9,3 |
58 |
160 |
| 14(30/50) |
2 x 2,50 |
0.8 |
0.7 |
1.1 |
10,7 |
82 |
215 |
| 20(16/32) |
3 x 0,50 |
0.6 |
0.7 |
0.9 |
8 |
40 |
115 |
| 18(24/32) |
3 x 0,75 |
0.6 |
0.7 |
0.9 |
8,3 |
47 |
125 |
| 17(32/32) |
3 x 1,0 |
0.6 |
0.7 |
1.0 |
8,8 |
54 |
145 |
| 16(30/30) |
3 x 1,50 |
0.7 |
0.7 |
1.0 |
9,7 |
73 |
185 |
| 14(30/50) |
3 x 2,50 |
0.8 |
0.7 |
1.1 |
11,3 |
106 |
250 |
| 20(16/32) |
4 x 0,50 |
0.6 |
0.7 |
0.9 |
8,5 |
44 |
125 |
| 18(24/32) |
4 x 0,75 |
0.6 |
0.7 |
1.0 |
9,1 |
58 |
155 |
| 17(32/32) |
4 x 1,0 |
0.6 |
0.7 |
1.0 |
9,4 |
68 |
170 |
| 16(30/30) |
4 x 1,50 |
0.7 |
0.7 |
1.1 |
10,7 |
93 |
220 |
| 14(30/50) |
4 x 2,50 |
0.8 |
0.8 |
1.2 |
12,6 |
135 |
305 |
| 20(16/32) |
5 x 0,50 |
0.6 |
0.7 |
1.0 |
9,3 |
55 |
155 |
| 18(24/32) |
5 x 0,75 |
0.6 |
0.7 |
1.1 |
9,7 |
66 |
175 |
| 17(32/32) |
5 x 1,0 |
0.6 |
0.7 |
1.1 |
10,3 |
78 |
200 |
| 16(30/30) |
5 x 1,50 |
0.7 |
0.8 |
1.2 |
11,8 |
106 |
265 |
| 14(30/50) |
5 x 2,50 |
0.8 |
0.8 |
1.3 |
13,9 |
181 |
385 |
| 20(16/32) |
7 x 0,50 |
0.6 |
0.7 |
1.1 |
10,8 |
69 |
205 |
| 18(24/32) |
7 x 0,75 |
0.6 |
0.7 |
1.2 |
11,5 |
84 |
250 |
| 17(32/32) |
7 x 1,0 |
0.6 |
0.8 |
1.2 |
12,2 |
107 |
275 |
| 16(30/30) |
7 x 1,50 |
0.7 |
0.8 |
1.3 |
14,1 |
162 |
395 |
| 14(30/50) |
7 x 2,50 |
0.8 |
0.8 |
1.5 |
16,5 |
238 |
525 |
| 20(16/32) |
12 x 0,50 |
0.6 |
0.8 |
1.3 |
13,3 |
98 |
285 |
| 18(24/32) |
12 x 0,75 |
0.6 |
0.8 |
1.3 |
13,9 |
125 |
330 |
| 17(32/32) |
12 x 1,0 |
0.6 |
0.8 |
1.4 |
14,7 |
176 |
400 |
| 16(30/30) |
12 x 1,50 |
0.7 |
0.8 |
1.5 |
16,7 |
243 |
525 |
| 14(30/50) |
12 x 2,50 |
0.8 |
0.8 |
1.7 |
19,9 |
367 |
745 |
| 20(16/32) |
18 x 0,50 |
0.6 |
0.9 |
1.3 |
18,6 |
147 |
385 |
| 18(24/32) |
18 x 0,75 |
0.6 |
0.8 |
1.5 |
19,9 |
200 |
475 |
| 17(32/32) |
18 x 1,0 |
0.6 |
0.8 |
1.5 |
20,8 |
243 |
525 |
| 16(30/30) |
18 x 1,50 |
0.7 |
0.8 |
1.7 |
24,1 |
338 |
720 |
| 14(30/50) |
18 x 2,50 |
0.8 |
0.9 |
2.0 |
28,5 |
555 |
1075 |
| 20(16/32) |
25 x 0,50 |
0.6 |
0.8 |
1.6 |
22,1 |
199 |
505 |
| 18(24/32) |
25 x 0,75 |
0.6 |
0.9 |
1.7 |
23,7 |
273 |
625 |
| 17(32/32) |
25 x 1,0 |
0.6 |
0.9 |
1.7 |
24,7 |
351 |
723 |
| 16(30/30) |
25 x 1,50 |
0.7 |
0.9 |
2.0 |
28,6 |
494 |
990 |
| 14(30/50) |
25 x 2,50 |
0.8 |
1.0 |
2.3 |
34,5 |
792 |
1440 |
| 20(16/32) |
36 x 0.50 |
0.6 |
0.9 |
1.7 |
24.7 |
317 |
620 |
| 18(24/32) |
36 x 0.75 |
0.6 |
0.9 |
1.8 |
26.2 |
358 |
889 |
| 17(32/32) |
36 x 1,0 |
0.6 |
0.9 |
1.9 |
27,6 |
438 |
910 |
| 16(30/50) |
36 x 1,50 |
0.7 |
1.0 |
2.2 |
32,5 |
662 |
1305 |
| 14(30/32) |
36 x 2,50 |
0.8 |
1.0 |
2.4 |
38,5 |
1028 |
1850 |
| 20(16/32) |
48 x 0,50 |
0.6 |
0.9 |
1.9 |
28,3 |
353 |
845 |
| 18(24/32) |
48 x 0,75 |
0.6 |
1.0 |
2.1 |
30,4 |
490 |
1060 |
| 17(32/32) |
48 x 1,0 |
0.6 |
1.0 |
2.1 |
31,9 |
604 |
1210 |
| 16(30/30) |
48 x 1,50 |
0.7 |
1.1 |
2.4 |
37 |
855 |
1665 |
| 14(30/50) |
48 x 2,50 |
0.8 |
1.2 |
2.4 |
43,7 |
1389 |
2390 |
| 20(16/32) |
60 x 0,50 |
0.6 |
1.0 |
2.1 |
31,1 |
432 |
1045 |
| 18(24/32) |
60 x 0,75 |
0.6 |
1.0 |
2.3 |
329 |
576 |
1265 |
| 17(32/32) |
60 x 1,0 |
0.6 |
1.0 |
2.3 |
34,7 |
720 |
1455 |
| 16(30/30) |
60 x 1,50 |
0.7 |
1.1 |
2.4 |
39,9 |
1050 |
1990 |
| 14(30/50) |
60 x 2,50 |
0.8 |
1.2 |
2.4 |
47,2 |
1706 |
2870 |
