H05Z-U / H07Z-U / H07Z-R
Application and Description
These cables are designed for the internal wiring of switchboards and distributor boards with an alternating nomnal voltage up to 1000 Volts or a direct voltage up to 750 volts. Generally install in pipes or ducts and internal wiring of appliances with maximum operating temperature of 90o C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gasses when burnt which is particularly important where electronic equipment is installed.
Standard and Approval
- CEI 20-19/9
- CEI 20-35 (EN60332-1) / CEI 30-37 (EN50267)
- CENELEC HD 22.9
- EN50265-2-2
- EN50265-2-1
- CE Low Voltage Directive 73/23/EEC and 93/68/EEC
- ROHS compliant
Cable Construction

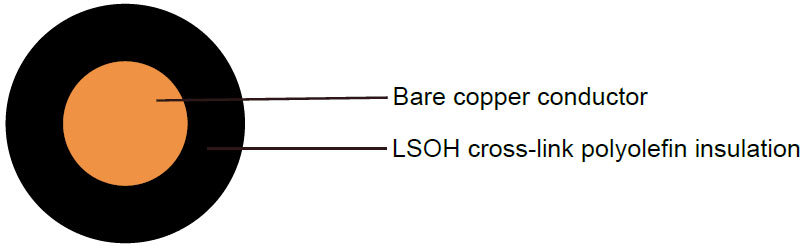

| Solid bare copper single wire to IEC 60228 Cl-1(H05Z-U / H07Z-U) |

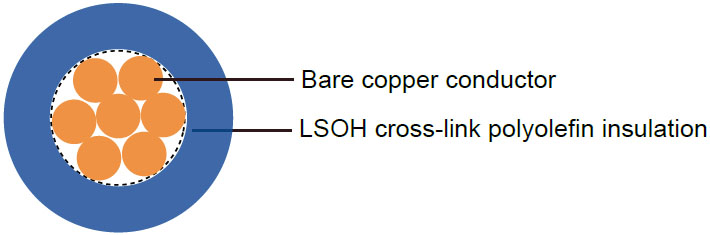

| Bare copper strands to IEC 60228 Cl-2 (H07Z-R) |
| Cross-link polyolefin EI5 core insulation |
| Cores to VDE-0293 colors |
| LSOH - low smoke, zero halogen |
Technical Characteristics
| Working voltage |
300/500v (H05Z-U) |
| |
450/750v (H07Z-U / H07Z-R) |
| Test voltage |
2500 volts |
| Flexing bending radius |
15 x O |
| Static bending radius |
10 x O |
| Flexing temperature |
+5o C to +90o C |
| Short circuit temperature |
+250o C |
| Flame retardant |
IEC 60332.1 |
| Insulation resistance |
10 MΩ x km |
Cable Parameter
| AWG |
No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Overall Diameter |
Nominal Copper Weight |
Nominal Weight |
| |
# x mm^2 |
mm |
mm |
kg/km |
kg/km |
| H05Z-U |
| 20 |
1 x 0.5 |
0.6 |
2.0 |
4.8 |
8 |
| 18 |
1 x 0.75 |
0.6 |
2.2 |
7.2 |
12 |
| 17 |
1 x 1 |
0.6 |
2.3 |
9.6 |
14 |
| H07Z-U |
| 16 |
1 x 1.5 |
0,7 |
2.8 |
14.4 |
20 |
| 14 |
1 x 2.5 |
0,8 |
3.3 |
24 |
30 |
| 12 |
1 x 4 |
0,8 |
3.8 |
38 |
45 |
| 10 |
1 x 6 |
0,8 |
4.3 |
58 |
65 |
| 8 |
1 x 10 |
1,0 |
5.5 |
96 |
105 |
| H07Z-R |
| 16(7/24) |
1 x 1.5 |
0.7 |
3.0 |
14.4 |
21 |
| 14(7/22) |
1 x 2.5 |
0.8 |
3.6 |
24 |
33 |
| 12(7/20) |
1 x 4 |
0.8 |
4.1 |
39 |
49 |
| 10(7/18) |
1 x 6 |
0.8 |
4.7 |
58 |
71 |
| 8(7/16) |
1 x 10 |
1 |
6.0 |
96 |
114 |
| 6(7/14) |
1 x 16 |
1 |
6.8 |
154 |
172 |
| 4(7/12) |
1 x 25 |
1.2 |
8.4 |
240 |
265 |
| 2(7/10) |
1 x 35 |
1.2 |
9.3 |
336 |
360 |
| 1(19/13) |
1 x 50 |
1.4 |
10.9 |
480 |
487 |
| 2/0(19/11) |
1 x 70 |
1,4 |
12.6 |
672 |
683 |
| 3/0(19/10) |
1 x 95 |
1,6 |
14.7 |
912 |
946 |
| 4/0(37/12) |
1 x 120 |
1,6 |
16.0 |
1152 |
1174 |
| 300MCM(37/11) |
1 x 150 |
1,8 |
17.9 |
1440 |
1448 |
| 350MCM(37/10) |
1 x 185 |
2,0 |
20.0 |
1776 |
1820 |
| 500MCM(61/11) |
1 x 240 |
2,2 |
22.7 |
2304 |
2371 |
