VV

Application and Description

For exposed fix installation in dry location, surface wiring, concealed wiring in wooden partition or above ceiling, embedded in plaster.

Reference Standard

TIS 11-2531

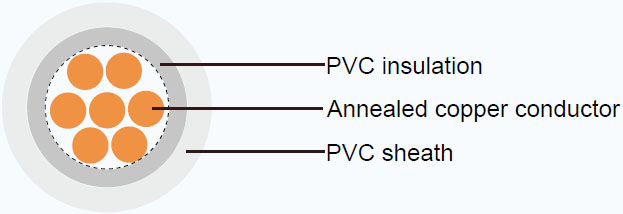

Cable Construction

Conductor Solid and stranded annealed copper, Sizes: 1 mm^2 up to 35 mm^2
Insulation Polyvinyl chloride (PVC), light gray color
Sheath Polyvinyl chloride (PVC), white color
VV - Industrial Cables to JIS Standard

Technical Characteristics

Maximum conductor temperature 70°C
Circuit voltage not exceeding 750 volts
Test voltage 2500 volts

Cable Parameter

No. of cores Conductor Insulation thickness Sheath thicknesssize No. & dia. of wire Overall diameter Maximum continuous current rating in free air Min. insulation Resistance (at70°C) Cable weight
mm^2 No./mm mm mm mm A MOhm/km kg/km
1 1 1/1.13 0.8 1 5.4 15 0.0141 35
1 1 7/0.40 0.8 1 5.6 15 0.0135 35
1 1.5 1/1.38 0.8 1 5.8 20 0.0123 41
1 1.5 7/0.50 0.8 1 6 20 0.0116 41
1 2.5 1/1.78 0.8 1.2 6.6 27 0.0102 60
1 2.5 7/0.67 0.8 1.2 7 27 0.0093 60
1 4 1/2.25 0.9 1.2 7.4 36 0.0094 80
1 4 7/0.85 0.9 1.2 7.8 36 0.0085 80
1 6 7/1.04 0.9 1.4 8.8 47 0.0073 120
1 10 7/1.35 1.1 1.4 10.5 66 0.0069 170
1 16 7/1.70 1.1 1.5 11.5 88 0.0057 250
1 25 7/2.14 1.3 1.5 13.5 118 0.0054 360
1 35 19/1.53 1.3 1.6 15 145 0.0047 470
