BS5308 Part 1 Technical Information

Instrument Cables BS 5308 Part 1 Colour code

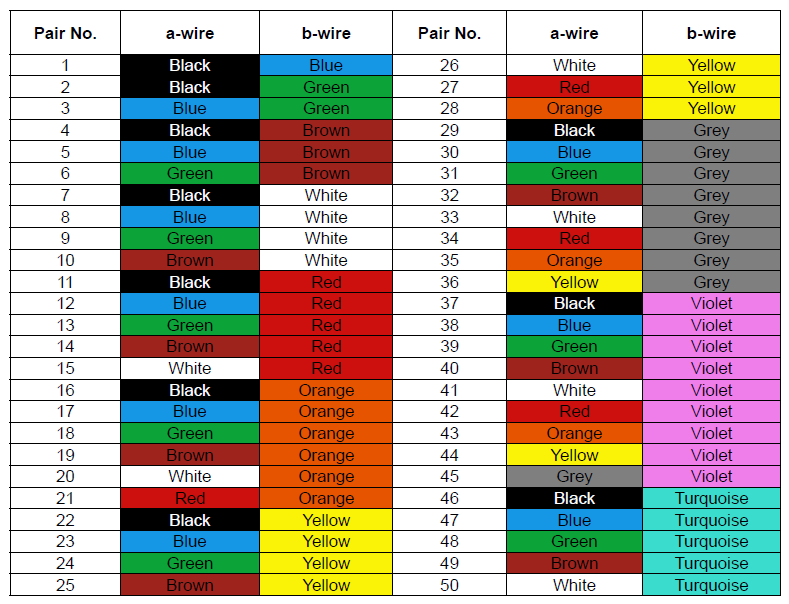

BS 5308 Part 1 Colour Identification

BS 5308 Part 1 Colour code

Single Quad (2 pair) are colour coded in clockwise order of rotation: Black, Blue, Green and Brown Individually screened pairs can also be identified by means of a polyester tape over blue and black pairs For cables in triple configuration please request colour code at time of enquiry.

Instrument Cables BS 5308 Part 1- PE Insulated

VDE Reference Code

PVC Sheath Version :
  • RE-2Y(St)Y (Overall Screen)
  • RE-2Y(St)Y PiMF(Individual Screen+Overall Screen)
  • RE-2Y(St)Y-SWA-Y(Overall Screen+Steel Wire Amour)
  • RE-2Y(St)Y PiMF-SWA-Y(Individual Screen+Overall Screen+Steel Wire Amour)
LSOH Sheath Version :
  • RE-2Y(St)H (Overall Screen)
  • RE-2Y(St)HPiMF(Individual Screen+Overall Screen)
  • RE-2Y(St)-SWA-H(Overall Screen+Steel Wire Amour)
  • RE-2Y(St)HPiMF-SWA-H(Individual Screen+Overall Screen+ Steel Wire Amour)
