Multipair instrument cables ESI 09-6 Issue 5 and 6 Technical Information

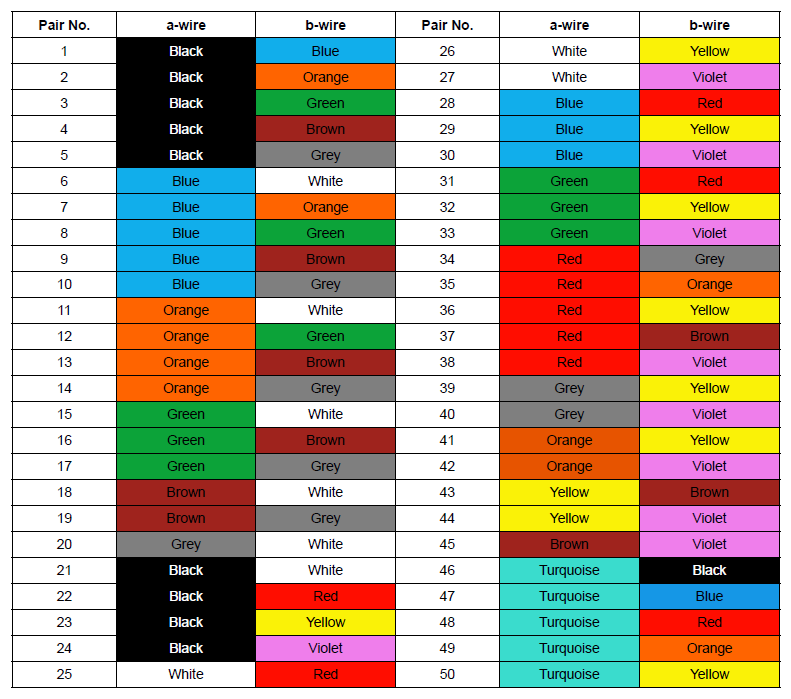

ESI 09-6 Issue 5 Colour Identification

Two-pair cables are cabled in quad formation and colour coded as follows:Blue, Orange, Green and Brown.

ESI 09-6 Issue 5 Colour Identification

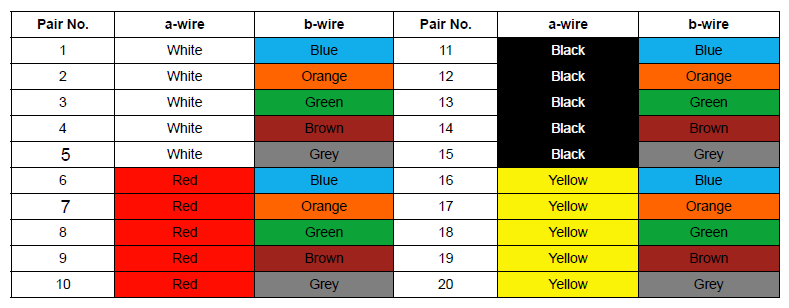

ESI 09-6 Issue 6 Colour Identification

Two-pair cables are cabled in quad formation and colour coded as follows:White, red, blue & orange.

ESI 09-6 Issue 6 Colour Identification

Cables having 40 pairs are produced in 20 pair unit,each unit with pair identification as above.Each core is identified by a number(running from 1 upwords) applied directly to its binder tape or by a separate longitudinal tape applied under a clear binder tape.
