Paper Insulated 11/11KV

Applications

These cables are used as HV feeder cables in fixed conditions.

Standards

  • AS/NZS 1972:2006
  • AS/NZS 1125
  • AS/NZS 3808
Paper Insulated 11/11KV

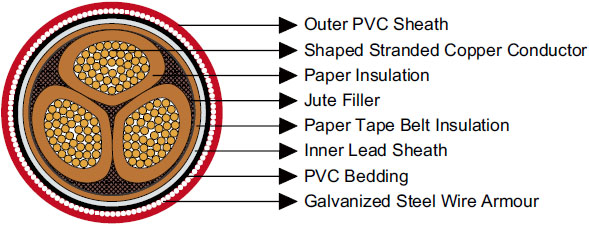

Construction

Conductors Sector shaped stranded copper conductor.
Insulation Paper tape.
Filling Jute fillers.
Insulation Paper tape belt insulation.
Inner Sheath Lead sheath.
Bedding PVC sheath.
Armour Galvanized steel wire armour.
Outer Sheath PVC sheath to AS/NZS 1026.

Dimensions and Weight

Nominal Conductor Area Minimum Insulation Thickness Nominal Lead Sheath Thickness Armour Wire Diameter Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
Between Weight Conductors Between Conductors and Lead Sheath
mm^2 mm mm mm^2 mm mm mm kg/100m
25 5.6 5.4 1.8 2.5 2.4 47.9 630
35 5.6 5.4 1.8 2.5 2.5 50.3 695
50 5.6 5.4 1.8 2.5 2.5 50.1 725
70 5.6 5.4 1.9 2.5 2.6 53.5 855
95 5.6 5.4 2.0 2.5 2.6 57.2 1000
120 5.6 5.4 2.0 2.5 2.7 60.1 1120
150 5.6 5.4 2.1 2.5 2.8 63.0 1260
185 5.6 5.4 2.3 3.15 2.9 68.0 1540
240 5.6 5.4 2.4 3.15 3.0 73.1 1820
300 5.6 5.4 2.6 3.15 3.2 77.9 2120
400 5.6 5.4 2.7 3.15 3.4 83.5 2500
