Type 1 1.1/1.1KV Collectively Screened

Applications

These collectively copper screened cables are used for wiring of machines, or between machines and equipment where PVC is suitable.

Standards

  • AS/NZS 1972:2006
  • AS/NZS 1125
  • AS/NZS 3808
Type 1 1.1/1.1KV Collectively Screened

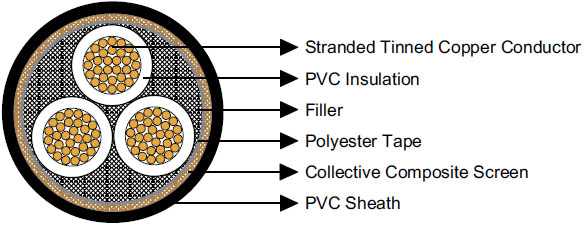

Construction

Conductors Stranded copper conductor.
Insulation PVC.
Bedding Polyester tape.
Collective Composite Screen (earth conductor) Tinned annealed copper braiding interwove with polyester yarn.
Sheath PVC sheath.

Dimensions and Weight

Number of Cores Nominal Conductor Area Strand Size Insulation Thickness Core Screen Thickness of Sheath Nominal Overall Diameter Nominal Weight
Strand Size Area of Screen
mm^2 No/mm mm mm mm^2 mm mm kg/100m
Type 1 – Collectively Screened
2 1.5 30/0.25 0.8 0.20 2.3 0.8 9.2 12
3 1.5 30/0.25 0.8 0.20 2.5 0.8 9.7 15
4 1.5 30/0.25 0.8 0.20 2.6 0.8 10.5 18
6 1.5 30/0.25 0.8 0.20 3.4 0.8 12.6 25
16 1.5 30/0.25 0.8 0.20 5.1 1.0 18.7 55
30 1.5 30/0.25 0.8 0.25 8.8 1.3 24.6 96
