Type 275 1.1/1.1KV

Applications

These cables are mainly used as a flexible feeder for shuttle cars and pump. Earth cores designed to reduce instances of wire breaks during reeling while under tension.

Standards

  • AS/NZS 1802:2003
  • AS/NZS 1125
  • AS/NZS 3808
  • AS/NZS 5000.1
Type 275 1.1/1.1KV

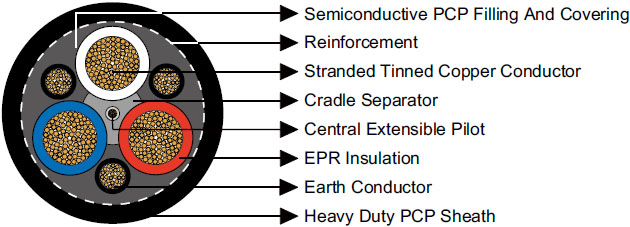

Construction

3×Conductors Flexible stranded tinned annealed copper conductor.
Insulation EPR.
Cradle Separator Semiconductive PCP.
Overall Core Screen Semiconductive PCP filling and covering.
3×Interstitial Earth Conductor Semiconductive PCP covered flexible stranded tinned copper conductor.
1×Central Extensible Pilot EPR covered flexible stranded tinned copper conductor.
Textile Reinforcement Open-weave braid reinforcement.
Sheath Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request.

Dimensions and Weight

Nominal Conductor Area Strand Size Insulation Thickness Earth Conductor Pilot Conductor Thickness of Sheath Including SC PCP Layer Nominal Overall Diameter Nominal Weight
Strand Size Thickness of Covering Strand Size Thickness of Covering
mm^2 No/mm mm No/mm mm No/mm mm mm mm kg/100m
Type 275
16 126/0.40 1.6 60/0.30 1.0 24/0.20 0.8 3.8 30.2 145
25 209/0.40 1.6 100/0.30 1.0 24/0.20 0.8 4.0 33.9 204
35 285/0.40 1.6 140/0.30 1.0 24/0.20 0.8 4.3 37.9 270
50 380/0.40 1.7 99/0.40 1.0 40/0.20 0.8 4.7 41.6 333
