Type 2S 1.1/1.1KV & 3.3/3.3KV Collectively Screened

Applications

These collectively copper screened cables are used for wiring of machines or between machines and equipment where a rubber cable is desired. These cables are also used for longwall lighting circuits, and may contain pilot and control cores or twisted pair and screened cores.

Standards

  • AS/NZS 1972:2006
  • AS/NZS 1125
  • AS/NZS 3808
Type 2S 1.1/1.1KV & 3.3/3.3KV Collectively Screened

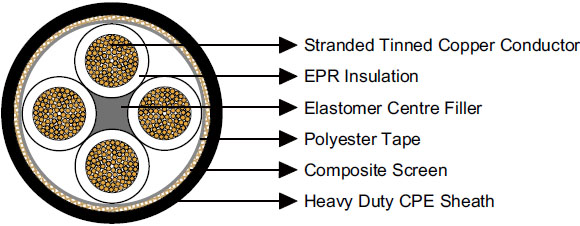

Construction

Conductors Stranded tinned annealed copper conductor.
Insulation EPR.
Filling Elastomer centre filler.
Bedding Polyester tape.
Composite Screen (earth conductor) Tinned annealed copper braiding interwove with polyester yarn.
Sheath Heavy duty CPE sheath.

Dimensions and Weight

Number of Cores Nominal Conductor Area Strand Size Insulation Thickness Core Screen Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
Strand Size Area of Screen
mm^2 No/mm mm mm mm^2 mm mm kg/100m
Type 2S 1.1/1kV Collectively Screened
2 1.5 30/0.25 1.0 0.20 5.3 1.8 14.7 17
4 1.5 30/0.25 1.0 0.20 12.1 1.8 19.9 26
6 1.5 30/0.25 1.0 0.20 22.6 1.8 25.7 35
16 1.5 30/0.25 1.0 0.25 113.1 1.8 47.1 71
20 1.5 30/0.25 1.0 0.25 159.0 1.8 53.2 82
