Type MP-GC Three-Conductor Mine Power Feeder Cable, PVC Jacket, 15kV

Applications

These cables are designed for connections between units of mine distribution systems, suitable for installed in duct, conduit or open air and for direct burial in wet and dry locations.

Standards

  • ICEA S-75-381/NEMA WC 58
  • ASTM B-8
  • CAN/CSA C22.2 No. 96

Construction

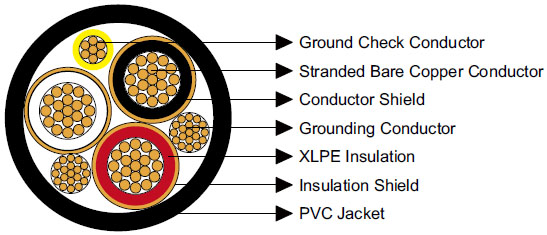

Type MP-GC Three-Conductor Mine Power Feeder Cable, PVC Jacket, 15kV
Conductors Stranded annealed bare copper conductor.
Conductor Shield Conducting layer.
Insulation Cross-Linked Polyethylene (XLPE).
Insulation Shield Conducting layer + copper tape.
Ground Check Conductor Copper conductor with a yellow polypropylene insulation.
Grounding Conductor Tinned copper conductor
Jacket Polyvinyl Chloride (PVC), black.

Options

Other jacket materials such as CSP/PCP/NBR/CPE/TPU are available upon request.

Mechanical and Thermal Properties

Minimum Bending Radius 12×OD
Maximum Conductor Operating Temperature +90℃

Dimensions and Weight

Construction No. of Strands Grounding Conductor Size Ground Check Conductor Size Nominal Insulation Thickness Nominal Jacket Thickness Nominal Overall Diameter Height×Width Nominal Weight Ampacity
No. of cores × AWG/kcmil - AWG/kcmil AWG/kcmil inch mm inch mm inch mm lbs/kft kg/km A
3×2 7 6 8 0.175 4.4 0.14 3.6 1.90 48.3 2021 3007 164
3×1 19 5 8 0.175 4.4 0.14 3.6 1.99 50.6 2503 3724 187
3×1/0 19 4 8 0.175 4.4 0.14 3.6 2.07 52.6 2658 3955 215
3×2/0 19 3 8 0.175 4.4 0.14 3.6 2.16 54.9 3066 4562 246
3×3/0 19 2 8 0.175 4.4 0.14 3.6 2.27 57.7 3710 5530 283
3×4/0 19 1 8 0.175 4.4 0.14 3.6 2.39 60.7 4369 6500 325
3×250 37 1/0 8 0.175 4.4 0.14 3.6 2.48 63.0 4875 7253 359
3×350 37 2/0 8 0.175 4.4 0.14 3.6 2.70 68.6 6412 9540 438
3×500 37 4/0 8 0.175 4.4 0.17 4.3 3.08 78.2 8610 12810 536

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
