Type SHD-CGC Three-Conductor Round Portable Power Cable 2kV

Applications

These heavy duty cables are designed for applications such as longwall shearers, continuous miners, loaders, drills, conveyors, pumps, and other mobile equipment requiring grounding conductors, where a ground check conductor, and metallic shielding are required.

Standards

  • ICEA S-75-381/NEMA WC 58
  • ASTM B 172
  • ASTM B 33
  • CAN/CSA C22.2 No. 96

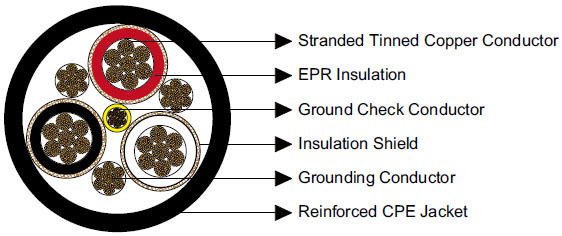

Construction

Type SHD-CGC Three-Conductor Round Portable Power Cable 2kV
Conductors Stranded annealed tinned copper conductor.
Insulation Ethylene Propylene Rubber (EPR).
Insulation Shield Tinned copper/textile braid.
Ground Check Conductor Tinned copper with a yellow insulation, located in the center of the cable.
Grounding Conductor Tinned copper conductor.
Jacket Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black.

Options

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

Minimum Bending Radius 6×OD
Maximum Conductor Operating Temperature +90℃

Dimensions and Weight

Construction No. of Strands Grounding Conductor Size Ground Check Conductor Size Nominal Insulation Thickness Nominal Jacket Thickness Nominal Overall Diameter Height×Width Nominal Weight Ampacity
No. of cores × AWG/kcmil - AWG/kcmil AWG/kcmil inch mm inch mm inch mm lbs/kft kg/km A
3×2/0 342 5 16 0.08 2.0 0.205 5.2 2.09 53.1 3400 5059 243
3×3/0 418 4 16 0.08 2.0 0.205 5.2 2.21 56.1 3934 5853 279
3×4/0 532 3 16 0.08 2.0 0.220 5.6 2.36 59.9 4860 7231 321
3×350 888 1 16 0.95 2.4 0.250 6.3 2.81 71.4 7400 11010 435

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
