(N)SHOEU 0.6/1kV Flexible cable

Applications

These cables are designed for use in open cast mining factories for laying of excavators and conveyor belts with permanent movements between parts of the equipment. These cables are used where the ascending pipe serves as earth conductor, for instance for submersible pumps.

Standards

VDE 0250 Part 812

Construction

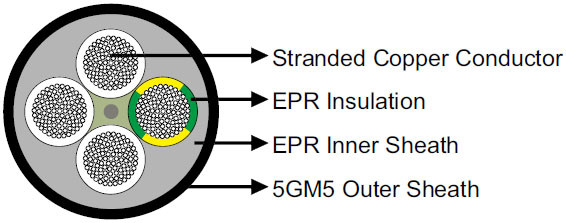

(N)SHOEU 0.6/1kV Flexible Cable
Conductors Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295/IEC 60228.
Insulation EPR.
Earth Conductor (for –J type) Incorporated as a fourth core or split into three in the outer interstices.
Inner Sheath EPR.
Outer Sheath CM type 5GM5.

Dimensions and Weight

(N)SHOEU-J

Number of Cores×Nominal Cross Section Insulation Thickness Thickness of Inner Sheath Thickness of Outer Sheath Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm^2 mm mm mm mm mm kg/km
3×1.0 0.60 0.8 1.2 9.2 9.6 160
3×1.5 0.60 0.8 1.2 10.4 12.0 180
3×2.5 0.70 0.8 1.2 11.3 12.9 240
3×4 0.80 0.9 1.3 12.5 14.1 295
3×6 0.80 1.0 1.4 13.9 15.5 370
3×10 1.00 1.0 1.4 16.8 18.8 570
3x50+3x25/3 1.10 1.4 2.5 31.5 34.5 2500
3x70+3x35/3 1.10 1.4 2.5 36.2 39.2 3400
3x95+3x50/3 1.20 1.7 2.8 42.0 45.0 4475
3x120+3x70/3 1.20 2.0 3.0 46.0 49.0 5400
4×1.5 0.60 0.8 1.2 10.7 13.0 210
4×2.5 0.70 0.9 1.4 11.7 13.7 260
4×4 0.80 0.9 1.4 13.7 15.7 350
4×6 0.80 1.0 1.4 15.2 17.2 485
4×10 1.00 1.0 1.6 19.0 21.0 690
4×16 1.00 1.2 1.8 22.0 24.0 1090
4×25 1.00 1.3 2.2 26.5 29.5 1600
4×35 1.00 1.3 2.3 30.0 33.0 2090
4×50 1.10 1.5 2.6 34.5 38.5 2700
4×70 1.10 1.5 2.6 39.5 43.5 3620
4×95 1.20 1.7 2.8 45.0 49.0 4710
4×120 1.20 2.0 3.3 51.0 55.0 6020

(N)SHOEU-O

Number of Cores×Nominal Cross Section Insulation Thickness Thickness of Inner Sheath Thickness of Outer Sheath Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm^2 mm mm mm mm mm kg/km
5×1.5 0.60 0.8 1.2 12.0 14.0 240
5×2.5 0.70 0.9 1.3 13.0 14.8 305
5×4 0.80 0.9 1.4 14.8 17.0 440
5×6 0.80 1.0 1.6 17.0 19.0 580
5×10 1.00 1.0 1.6 20.0 23.0 870
5×16 1.00 1.2 1.8 23.8 26.8 1280
5×25 1.00 1.3 2.3 29.5 32.5 1950
2×1.5 0.60 0.8 1.2 9.8 11.8 155
7×1.5 0.60 0.9 1.4 13.0 14.6 295
8×1.5 0.60 0.9 1.4 14.0 15.6 320
10×1.5 0.60 1.0 1.6 15.5 17.5 390
12×1.5 0.60 1.0 1.6 16.5 18.5 445
2×2.5 0.70 0.8 1.2 10.8 12.8 195
4×2.5 0.70 0.9 1.4 11.7 13.7 290
7×2.5 0.70 0.9 1.4 15.0 17.0 410
8×2.5 0.70 0.9 1.4 16.0 19.0 430
10×2.5 0.70 1.0 1.6 18.0 20.5 520
12×2.5 0.70 1.0 1.6 18.5 21.5 580
18×2.5 0.70 1.0 1.6 21.5 24.5 835
24×2.5 0.70 1.2 1.8 25.5 28.5 895
2×4 0.80 0.9 1.2 12.0 13.6 250
12×4 0.80 1.2 1.8 25.0 28.0 990
1×16 1.00 - 1.4 9.6 11.2 215
1×25 1.00 - 1.7 11.2 13.2 325
1×35 1.00 - 1.8 12.6 14.6 430
1×50 1.10 - 2.0 14.6 16.6 610
1×70 1.10 - 2.2 16.6 18.6 825
1×95 1.20 - 2.3 18.9 20.9 1070
1×120 1.20 - 2.4 20.8 22.8 1300
1×150 1.30 - 2.5 23.0 25.0 1610
1×185 1.40 - 2.6 24.9 27.9 2000
1×240 1.50 - 2.8 28.2 31.2 2500
1×300 1.80 - 3.3 31.8 34.8 3200
3×2.5 0.70 0.8 1.2 11.3 12.9 240
3×4 0.80 0.9 1.3 12.5 14.1 295
3×6 0.80 1.0 1.4 13.9 15.5 370
3×10 1.00 1.0 1.4 16.8 18.8 570
3×16 1.00 1.0 1.6 19.0 22.0 770
3×25 1.00 1.2 2.0 23.5 26.5 1200
3×35 1.10 1.3 2.2 27.5 30.5 1570
3×50 1.10 1.5 2.6 31.5 35.5 2200
3×70 1.10 1.5 2.6 36.0 40.0 2910
3×95 1.20 1.7 2.8 41.0 45.0 3780
3×120 1.20 1.8 3.0 45.0 49.0 4700
3×150 1.30 1.7 2.8 49.0 53.0 5650
3×185 1.40 2.2 3.4 55.0 59.0 7050
