NSSHOEU/NTSWOEU Submersible Cable Up To 6kv

Applications

These cables are used for the connection of electrical operating equipment in industrial water, notably for submersible pumps. 3-core cables without earth cores are used where the ascending pipe serves as earth conductor.

Standards

  • VDE 0250 Part 812
  • VDE 0250 Part 813

Construction

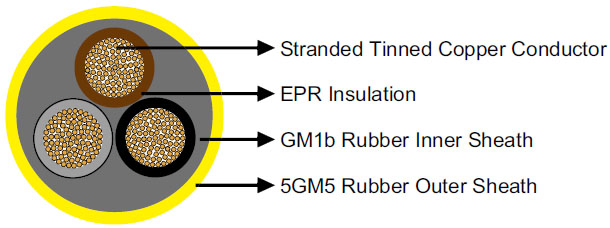

NSSHOEU/NTSWOEU Submersible Cable Up To 6kv
Conductors Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.
Insulation Heat resistant EPR.
Inner Sheath Rubber type GM1b.
Outer Sheath Chlorinated rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant (for 0.6/1kV). Chlorinated rubber type 5GM3, oil resistant and flame retardant (for 1.8/3kV, 3.6/6kV).

Dimensions and Weight

NSSHOEU 0.6/1kV

Number of Cores×Nominal Cross Section Nominal Overall Diameter Nominal Weight
No. ×mm^2 mm kg/km
3×4 17.0 400
3×10 22.0 720
3×16 26.0 1050
3×25 31.0 1500
3×35 35.0 2050
3×50 41.0 2820
3×70 45.0 3540
3×95 52.0 4750
4×25 35.0 2010
4×35 38.0 2530
4×50 45.0 3500
3×70/35 49.0 4190

NTSWOEU 1.8/3kV

Number of Cores×Nominal Cross Section Nominal Overall Diameter Nominal Weight
No. ×mm^2 mm kg/km
3×25 35.0 1840
3×35 39.0 2410
3×50 43.0 3040
3×70 48.0 3920
3×95 53.0 4950

NTSWOEU 3.6/6kV

Number of Cores×Nominal Cross Section Nominal Overall Diameter Nominal Weight
No. ×mm^2 mm kg/km
3×25 45.0 2690
3×35 47.0 3180
3×50 51.0 3860
3×70 56.0 4870
3×95 60.0 5870
