1.9/3.3kV, 3.3/3.3kV HF-EPR Insulated, SW2/SW4 Sheathed Armoured Flame Retardant Power & Control Cable
Applications
These medium voltage elastomeric insulated cables are designed for fixed wiring in ships and on mobile offshore units, suitable for use in power and control applications.
Standards
- BS 6883
- IEC 60332-3A Flame retardant
- IEC 60754-1
- IEC 60754-2 Corrosivity
- IEC 61034-2 Smoke density
- Cold bend and impact (-40°C) (on request)
- CSA C22.2 No. 38-95 (on request)

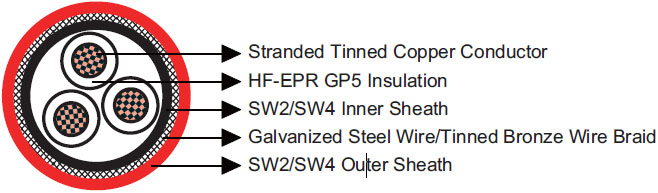

Construction
| Conductor |
Tinned copper wire stranded circular cl. 2 BS 6360/IEC 60228 |
| Insulation |
HF-EPR GP5 according to BS 7655 1.2 |
| Inner Sheath |
Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6 |
| Armour |
Galvanized steel wire braid or tinned bronze wire braid (single core) |
| Outer Sheath |
Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6 |
Mechanical and Thermal Properties
| Minimum Internal Bending Radius |
6×OD |
| Temperature Range |
-40°C ~ +90°C |
Dimensions and Weight
1.9/3.3kV
| Construction No. of cores×Cross section |
Nominal Insulation Thickness |
Nominal Inner Sheath Thickness |
Minimum Diameter Over Inner Sheath |
Maximum Diameter Over Inner Sheath |
Nominal Armour Wire Diameter |
Nominal Outer Sheath Thickness |
Minimum Overall Diameter |
Maximum Overall Diameter |
Approx. Weight |
| mm^2 |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 1×10 |
2.2 |
1.1 |
10.2 |
11.9 |
0.3 |
1.3 |
14.2 |
16.2 |
398 |
| 1×16 |
2.2 |
1.2 |
11.4 |
13.1 |
0.3 |
1.3 |
15.4 |
17.6 |
499 |
| 1×25 |
2.2 |
1.2 |
13.0 |
14.8 |
0.3 |
1.4 |
17.1 |
19.5 |
675 |
| 1×35 |
2.2 |
1.3 |
14.1 |
15.9 |
0.3 |
1.4 |
18.2 |
20.6 |
793 |
| 1×50 |
2.2 |
1.3 |
15.3 |
17.2 |
0.3 |
1.5 |
19.6 |
22.4 |
970 |
| 1×70 |
2.2 |
1.4 |
17.2 |
19.2 |
0.3 |
1.6 |
21.7 |
24.6 |
1269 |
| 1×95 |
2.4 |
1.5 |
19.4 |
21.9 |
0.3 |
1.7 |
24.2 |
27.2 |
1623 |
| 1×120 |
2.4 |
1.6 |
21.3 |
23.8 |
0.3 |
1.7 |
26.0 |
29.1 |
1983 |
| 1×150 |
2.4 |
1.6 |
22.8 |
25.4 |
0.45 |
1.8 |
28.4 |
31.6 |
2423 |
| 1×185 |
2.4 |
1.7 |
24.8 |
27.4 |
0.45 |
1.9 |
30.6 |
34.3 |
2917 |
| 1×240 |
2.4 |
1.8 |
27.5 |
30.3 |
0.45 |
2.0 |
33.5 |
37.3 |
3654 |
| 1×300 |
2.4 |
1.9 |
30.0 |
33.2 |
0.45 |
2.1 |
36.2 |
40.1 |
4428 |
| 1×400 |
2.6 |
2.0 |
33.8 |
37.1 |
0.45 |
2.3 |
40.3 |
44.8 |
5416 |
| 1×500 |
2.8 |
2.2 |
37.6 |
41.1 |
0.45 |
2.5 |
44.5 |
49.2 |
6726 |
| 1×630 |
2.8 |
2.3 |
41.2 |
45.2 |
0.45 |
2.6 |
48.4 |
53.6 |
8562 |
| 3×10 |
2.2 |
1.5 |
20.4 |
22.9 |
0.3 |
1.7 |
25.1 |
28.2 |
1052 |
| 3×16 |
2.2 |
1.6 |
22.8 |
25.3 |
0.3 |
1.8 |
27.7 |
30.8 |
1357 |
| 3×25 |
2.2 |
1.8 |
26.6 |
29.3 |
0.45 |
2.0 |
32.6 |
36.3 |
2032 |
| 3×35 |
2.2 |
1.8 |
28.4 |
31.2 |
0.45 |
2.1 |
34.6 |
38.5 |
2382 |
| 3×50 |
2.2 |
1.9 |
31.2 |
34.4 |
0.45 |
2.2 |
37.6 |
41.6 |
2936 |
| 3×70 |
2.2 |
2.1 |
35.3 |
38.7 |
0.45 |
2.4 |
42.1 |
46.7 |
3877 |
| 3×95 |
2.4 |
2.3 |
40.2 |
44.1 |
0.45 |
2.6 |
47.4 |
52.1 |
4995 |
| 3×120 |
2.4 |
2.4 |
44.0 |
48.1 |
0.45 |
2.7 |
51.4 |
56.7 |
6118 |
| 3×150 |
2.4 |
2.6 |
47.6 |
51.8 |
0.45 |
2.9 |
55.3 |
60.8 |
7284 |
| 3×185 |
2.4 |
2.7 |
51.7 |
56.4 |
0.45 |
3.0 |
59.6 |
65.7 |
8750 |
| 3×240 |
2.4 |
3.0 |
57.7 |
62.9 |
0.45 |
3.3 |
66.2 |
72.6 |
11118 |
| 3×300 |
2.4 |
3.2 |
63.1 |
68.6 |
0.45 |
3.5 |
72.0 |
79.0 |
13531 |
3.3/3.3kV
| Construction No. of cores×Cross section |
Nominal Insulation Thickness |
Nominal Inner Sheath Thickness |
Minimum Diameter Over Inner Sheath |
Maximum Diameter Over Inner Sheath |
Nominal Armour Wire Diameter |
Nominal Outer Sheath Thickness |
Minimum Overall Diameter |
Maximum Overall Diameter |
Approx. Weight |
| mm^2 |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 1×10 |
3.0 |
1.2 |
12.0 |
13.7 |
0.3 |
1.4 |
16.1 |
18.4 |
483 |
| 1×16 |
3.0 |
1.2 |
13.0 |
14.7 |
0.3 |
1.4 |
17.1 |
19.4 |
579 |
| 1×25 |
3.0 |
1.3 |
14.7 |
16.7 |
0.3 |
1.5 |
19.1 |
21.5 |
774 |
| 1×35 |
3.0 |
1.3 |
15.6 |
17.6 |
0.3 |
1.5 |
19.9 |
22.8 |
885 |
| 1×50 |
3.0 |
1.4 |
17.0 |
19.0 |
0.3 |
1.6 |
21.5 |
24.4 |
1082 |
| 1×70 |
3.0 |
1.5 |
18.9 |
21.0 |
0.3 |
1.6 |
23.4 |
26.4 |
1377 |
| 1×95 |
3.0 |
1.5 |
20.6 |
23.1 |
0.3 |
1.7 |
25.3 |
28.4 |
1699 |
| 1×120 |
3.0 |
1.6 |
22.5 |
25.0 |
0.3 |
1.8 |
27.4 |
30.5 |
2081 |
| 1×150 |
3.0 |
1.7 |
24.1 |
26.8 |
0.45 |
1.9 |
30.0 |
33.6 |
2550 |
| 1×185 |
3.0 |
1.7 |
26.0 |
28.6 |
0.45 |
2.0 |
32.0 |
35.7 |
3032 |
| 1×240 |
3.0 |
1.8 |
28.7 |
31.8 |
0.45 |
2.1 |
34.8 |
38.7 |
3780 |
| 1×300 |
3.0 |
1.9 |
31.2 |
34.4 |
0.45 |
2.2 |
37.6 |
41.5 |
4563 |
| 1×400 |
3.0 |
2.1 |
34.7 |
38.1 |
0.45 |
2.3 |
41.3 |
45.8 |
5514 |
| 1×500 |
3.2 |
2.2 |
38.4 |
41.9 |
0.45 |
2.5 |
45.3 |
50.0 |
6807 |
| 1×630 |
3.2 |
2.4 |
42.2 |
46.2 |
0.45 |
2.6 |
49.4 |
54.6 |
8691 |
| 3×10 |
3.0 |
1.7 |
24.1 |
26.7 |
0.45 |
1.9 |
29.9 |
33.6 |
1404 |
| 3×16 |
3.0 |
1.8 |
26.5 |
29.2 |
0.45 |
2.0 |
32.5 |
36.2 |
1738 |
| 3×25 |
3.0 |
1.9 |
30.1 |
33.2 |
0.45 |
2.1 |
36.3 |
40.2 |
2314 |
| 3×35 |
3.0 |
2.0 |
32.1 |
35.4 |
0.45 |
2.2 |
38.5 |
42.9 |
2701 |
| 3×50 |
3.0 |
2.1 |
34.9 |
38.3 |
0.45 |
2.3 |
41.5 |
46.0 |
3278 |
| 3×70 |
3.0 |
2.2 |
38.9 |
42.7 |
0.45 |
2.5 |
45.8 |
50.5 |
4226 |
| 3×95 |
3.0 |
2.4 |
42.9 |
46.9 |
0.45 |
2.7 |
50.2 |
55.5 |
5297 |
| 3×120 |
3.0 |
2.5 |
46.7 |
50.9 |
0.45 |
2.8 |
54.2 |
59.7 |
6442 |
| 3×150 |
3.0 |
2.7 |
50.3 |
54.9 |
0.45 |
3.0 |
58.2 |
64.2 |
7631 |
| 3×185 |
3.0 |
2.8 |
54.4 |
59.2 |
0.45 |
3.2 |
62.7 |
68.9 |
9158 |
| 3×240 |
3.0 |
3.1 |
60.4 |
65.7 |
0.45 |
3.4 |
69.1 |
76.0 |
11526 |
