MRE-M3GCH 150/250V Mica Tape + HEPR Insulated, LSOH (SHF1) Sheathed, Armoured Fire Resistant Instrumentation & Control Cables (Multipair)

Applications

These cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

Standards

  • DIN 89159
  • IEC 60092-351/375/359
  • IEC 60331-21
  • IEC 60332-1
  • IEC 60332-3-22
  • IEC 60754-1/2
  • IEC 61034

Construction

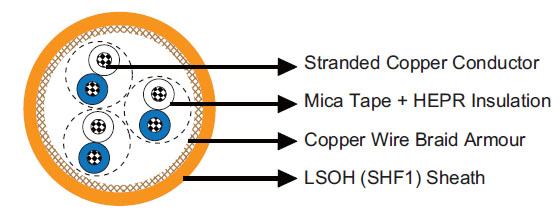

  MRE-M3GCH 150/250V Mica Tape + HEPR Insulated, LSOH (SHF1) Sheathed, Armoured Fire Resistant Instrumentation & Control Cables (Multipair)
Conductors Stranded copper conductor.
Insulation Mica tape + HEPR.
Cabling Element Pair.
Armour Copper wire braid.
Outer Sheath LSOH (SHF1).

Core Identification

Pair White/blue with printed pair number and core number.

Mechanical and Thermal Properties

Bending Radius for Fixed Installations 6×OD
Temperature Range -30℃ ~ +75℃

Dimensions and Weight

Part No. Construction No. of elements×No. of cores in element×Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
  mm^2 mm mm mm kg/km
MRE-M3GCH-1P0.75 1×2×0.75 0.5 1.2 10.5 110
MRE-M3GCH-2P0.75 2×2×0.75* 0.5 1.3 11.0 150
MRE-M3GCH-4P0.75 4×2×0.75 0.5 1.4 16.0 270
MRE-M3GCH-7P0.75 7×2×0.75 0.5 1.8 19.0 400
MRE-M3GCH-10P0.75 10×2×0.75 0.5 1.9 22.0 560
MRE-M3GCH-14P0.75 14×2×0.75 0.5 2.0 27.0 740
MRE-M3GCH-19P0.75 19×2×0.75 0.5 2.1 29.0 930
MRE-M3GCH-24P0.75 24×2×0.75 0.5 2.2 31.0 1110

*: 2 pairs are assembled as a quad.
