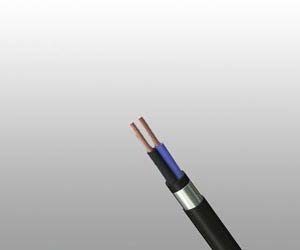

P16 IFLI 250 V

Applications

These cables are flame retardant, low smoke and halogen free, used for living, quarter and office areas.

Standards

  • IEC 60092-353
  • IEC 60092-351
  • IEC 60092-359
  • IEC 60332-1
  • IEC 60332-3-22
  • IEC 60754-1,2
  • IEC 61034-1,2
  • NEK 606:2004

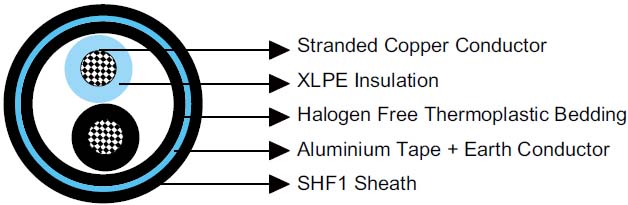

Construction

P16 IFLI 250 V P16 IFLI 250 V



Conductors Circular stranded copper wire to IEC 60228 class 2.
Insulation XLPE.
Bedding Halogen free thermoplastic compound.
Metal Screen Longitudinal aluminium tape, thickness 0.2 mm in contact with a stranded copper earth conductor.
Outer Sheath Halogen free thermoplastic compound, SHF1, coloured grey.

Electrical Characteristics

Nominal Cross Section Area mm^2 2.5
Maximum Resistant@20℃ Ω/km 7.41
Continuous Current Rating@45℃2 Core A 26
Short Circuit Current 1s A 360
Operating Voltage V 250

Mechanical and Thermal Properties

Bending Radius 8×OD (during installation)
  6×OD (fixed installed)
Temperature Range -20℃ ~ +90℃

Dimensions and Weight

Construction No. of elements×No. of cores in element×Cross section(mm^2) Nominal Insulation Thickness (mm) Nominal Sheath Thickness (mm) Nominal Overall Diameter (mm) Nominal Weight (kg/km)
Inner Outer
2×1×2.5 0.7 1.1 1.2 10.0 180
